Suitable for ventilated façades in new and refurbishment projects with the following cladding materials:

  • Fibre-cement.
  • High pressure laminate (HPL).
  • Plaster.
  • Metal.
  • Composite.
  • Ceramic.

Description

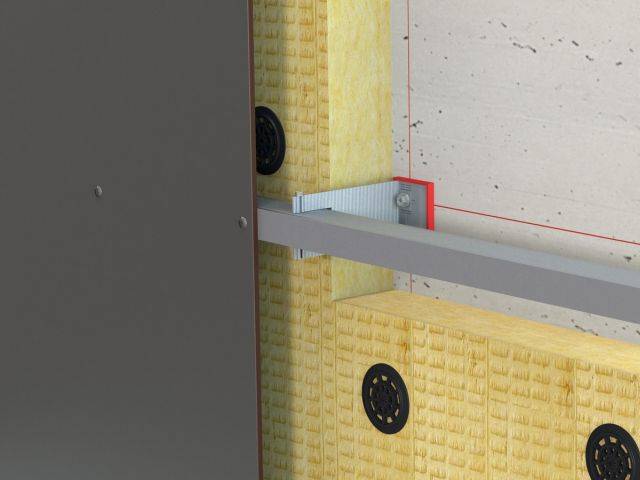

Ventilated façade, one-layer system, consisting of horizontal aluminium profiles and aluminium brackets (MFT-FOX H/HI).

The aluminium bracket has a pre-assembled connecting screw and additional washer allowing fastening in accordance with Eurocode for vertical adjustment of the thermal bridge-free bracket. Fixed and flexible points are not required as the thermal expansion of the profile is taken up by the flexibility of the bracket.


Features and benefits:

  • 40 mm adjustment capability of the profiles on the wall brackets.
  • Powder coated bracket base plate for corrosion resistance.
  • Bracket length: 55–300 mm (in 20 mm increments).
  • Brackets can be installed using a range of methods - anchors, screws and direct fastening.
  • Thermal bridge calculation in accordance with EN ISO 10211-1.
  • Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
  • Suitable for all common base materials.
  • Individual design using the PROFIS Facade PC application guarantees a technically sound, cost-efficient solution.
  • The isolator separates the substructure from the base material reducing the thermal bridge (FOX HI).
  • Easy to use with wind foil.
  • No different bracket sizes.

General information

Finish

Powder coated

Material

Aluminium

Length

55 mm

75 mm

95 mm

115 mm

135 mm

Show more

Manufacturer guidance

Bracket length.

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

G10/150 Steel framing system

G10/20 Steel framing system

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards

EN 755-2.

EN 573-3.

EN 12020-2.

EN 1090-3.

EN AW 6063 T66.

EN 1090.

Factory finish

Powder coating.

Thermal break

EN ISO 10211-1.

Type

MFT-FOX H.

MFT-FOX HI.

Fastener

HIT-HY.

HRD-H.

HSA-R.

HST-R.

HUS-HR.

Show more

Profiles

MFT-L.

Bracket length

55 mm.

75 mm.

95 mm.

115 mm.

135 mm.

Show more
