Application

Suitable for ventilated façades in new and refurbishment projects with metal and composite cladding materials.

Description

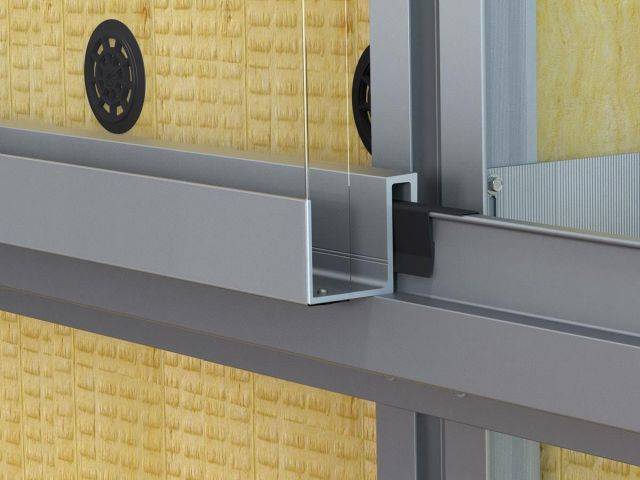

The ventilated façade two layers system consists of vertical/ horizontal aluminium profiles and thermal bridge-free brackets (MFT-FOX VT). The system is specifically designed for vertical/ horizontal substructures with the horizontal system profiles for fastening aluminium composite panel (ACM) cassettes in ventilated façades.


The brackets are designed with both fixed and flexible point to allow for thermal expansion of the profile. The vertical profiles are fastened to the brackets with specially design stainless steel screws S-AD, to allow movement of the profiles relative to the wall brackets due to flexible points and to keep the profile connected to the wall brackets due to the fixed points. The horizontal profiles (Start, Sand Z) are fastened to the vertical substructure with stainless steel screws. The system profiles allow the cassettes to be fastened with a shadow gap.


Features and benefits:

  • Flexible design using fixed and flexible points.
  • 40 mm adjustment capability of the profiles on the wall brackets.
  • Powder coated bracket base plate for corrosion resistance.
  • Bracket length: 140–320 mm.
  • Brackets can be installed using a range of methods – anchors, screws and direct fastening.
  • Thermal bridge calculation in accordance with EN ISO 10211-1.
  • Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.

General information

Finish

Powder coated

Material

Aluminium

Length

140 mm

320 mm

Manufacturer guidance

Bracket length, 140–320 mm.

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

G10/150 Steel framing system

G10/20 Steel framing system

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards

EN 755-2.

EN 573-3.

EN 12020-2.

EN 1090-3.

EN AW 6063 T66.

EN 1090.

Factory finish

Powder coating.

Thermal break

EN ISO 10211-1.

Bracket length

140–320 mm.

Type

MFT-FOX VT M / L.

Fastener

HIT-HY.

HRD-H.

HSA-R.

HST-R.

HUS-HR.

Show more

Type

MFT-L.

MFT-OT.

MFT-SZ 20.

MFT-T.

Fastener

S-AD.

S-MD 33 PSS.

S-MD51LS.
