Suitable for ventilated façades in new and refurbishment projects with the following cladding materials:

  • Fibre-cement.
  • High pressure laminate (HPL).
  • Metal.
  • Plaster.
  • Stone.
  • Composite.
  • Ceramic.

Description

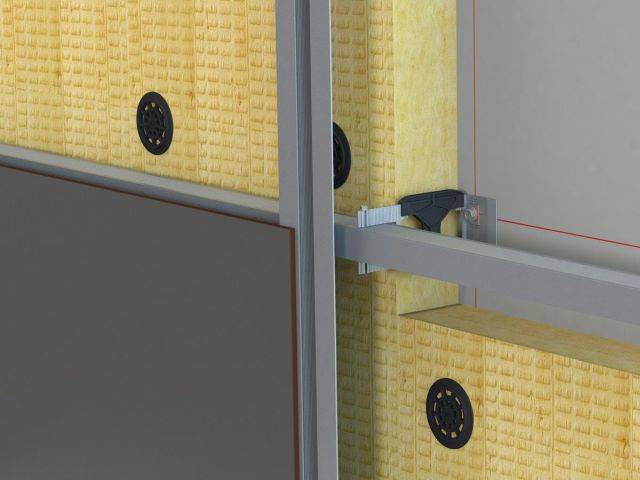

The ventilated façade two layer system consists of horizontal/ vertical aluminium profiles and thermal bridge-free brackets (MFT-FOX HT). The bracket has a pre-assembled connecting screw and additional washer allowing fastening in accordance with Eurocode with vertical adjustment of the bracket.


Features and benefits:

  • 40 mm adjustment capability of the profiles on the wall brackets.
  • Powder coated bracket base plate for corrosion resistance.
  • Bracket length: 140–320 mm.
  • Brackets can be installed using a range of methods - anchors, screws and direct fastening.
  • Substructures can be designed with PROFIS Façade to create technically sound, cost-efficient solutions.
  • Thermal bridge calculation in accordance with EN ISO 10211-1.
  • Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.

General information

Finish

Powder coated

Material

Aluminium

Length

140 mm

320 mm

Manufacturer guidance

Bracket length, 140–320 mm.

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

G10/150 Steel framing system

G10/20 Steel framing system

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards

EN 755-2.

EN 573-3.

EN 12020-2.

EN 1090-3.

EN AW 6063 T66.

EN 1090.

Factory finish

Powder coating.

Thermal break

EN ISO 10211-1.

Type

MFT-FOX HT M / L.

Fastener

HIT-HY.

HRD-H.

HSA-R.

HST-R.

HUS-HR.

Show more

Profiles

MFT-L.

MFT-O.

MFT-Z.

Bracket length

140–320 mm.
