Application

Suitable for ventilated façades in new and refurbishment projects with the following cladding materials:

  • Fibre-cement.
  • High pressure laminate (HPL).
  • Metal.
  • Plaster.
  • Stone.
  • Composite.
  • Ceramic.

Description

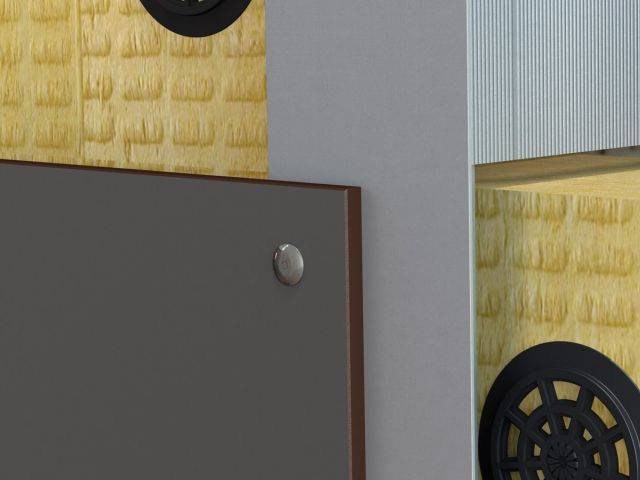

The ventilated façade two layer system consists of horizontal/ vertical aluminium profiles and aluminium brackets (MFT-FOX H/HI).


The aluminium bracket has a pre-assembled connecting screw, A4, and additional washer allowing fastening in accordance with Eurocode with vertical adjustment of the thermal bridge-free bracket.


Features and benefits:

  • 40 mm adjustment capability of the profiles on the wall brackets.
  • Powder coated bracket base plate for corrosion resistance.
  • Bracket length: 55–300 mm (in 20 mm increments).
  • Brackets can be installed using a range of methods - anchors, screws and direct fastening.
  • Thermal bridge calculation in accordance with EN ISO 10211-1.
  • Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
  • Suitable for all common base materials.
  • Individual design using the PROFIS Facade PC application guarantees a technically sound, cost-efficient solution.
  • The isolator separates the substructure from the base material reducing the thermal bridge (FOX HI).
  • Easy to use with wind foil.
  • No different bracket sizes.

General information

Color

Grey

Finish

Powder coated

Material

Aluminium

Length

55 mm

75 mm

95 mm

115 mm

135 mm

Show more

Manufacturer guidance

Bracket length.

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

G10/150 Steel framing system

G10/20 Steel framing system

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards

EN 755-2.

EN 573-3.

EN 12020-2.

EN 1090-3.

EN AW 6063 T66.

EN 1090.

Structural members

To comply with BS 8118.

Factory finish

Powder coating.

Thermal break

EN ISO 10211-1.

Type

MFT-FOX H.

MFT-FOX HI.

Fastener

HIT-HY.

HRD-H.

HSA-R.

HST-R.

HUS-HR.

Show more

Profiles

MFT-L.

MFT-O.

MFT-Z.

Bracket length

55 mm.

75 mm.

95 mm.

115 mm.

135 mm.

Show more
