MFT-FOX VT-2L-Hangers-Undercut Anchors
Verified by manufacturer 29 days ago
Ventilated façade system.
Application
Suitable for ventilated façades in new and refurbishment projects with the following cladding materials:
- Fibre-cement.
- High pressure laminate (HPL).
- Ceramic.
- Stone.
Description

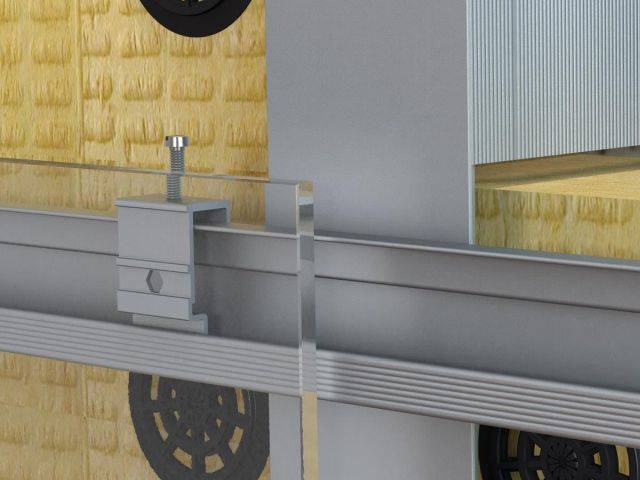

The ventilated façade two layers system consists of vertical/ horizontal aluminium profiles and thermal bridge-free brackets (MFT-FOX VT). The brackets are designed with both fixed and flexible point to allow for thermal expansion of the profile.
Features and benefits:
- Flexible design using fixed and flexible points.
- 40 mm adjustment capability of the profiles on the wall brackets.
- Powder coated bracket base plate for corrosion resistance.
- Bracket length: 140–320 mm.
- Brackets can be installed using a range of methods—anchors, screws and direct fastening.
- Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
- Substructures can be designed with PROFIS Facade to create technically sound, cost-efficient solutions.
- Thermal bridge calculation in accordance with EN ISO 10211-1.
- Can be used with all panels with approval for the undercut anchor fastening.
General information
Color | Silver |
Finish | Powder coated |
Material | Aluminium |
Length | 140 mm 320 mm Manufacturer guidanceBracket length, 140–320 mm. |
Uniclass | |
CAWS | G10/150 Steel framing system G10/20 Steel framing system H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Standards | EN 755-2.EN 573-3.EN 12020-2.EN 1090-3.EN AW 6063 T66.EN 1090. |
Factory finish | Powder coating. |
Colour | Silver. |
Thermal break | EN ISO 10211-1. |
Bracket length | 140–320 mm. |
Type | MFT-FOX VT M / L. |
Fastener | HIT-HY. HRD-H. HSA-R. HST-R. HUS-HR. |
Type | MFT-L. MFT-HP 200. |
Fastener | S-AD. S-MD51LS. |
Connector fastener | S-MD51LS. |
Accessories | None. Hangers. MFT-JS. Guidance for specification option: 6 x 15 mm A4 fastener. S-MD03S. Guidance for specification option: 5.5 x 32 mm fastener. |
