Application

Suitable for ventilated façades in new and refurbishment projects with the following cladding materials:

  • Fibre-cement.
  • High pressure laminate (HPL).
  • Metal.
  • Plaster.
  • Ceramic.
  • Composite.
  • Terracotta and stone.

Description

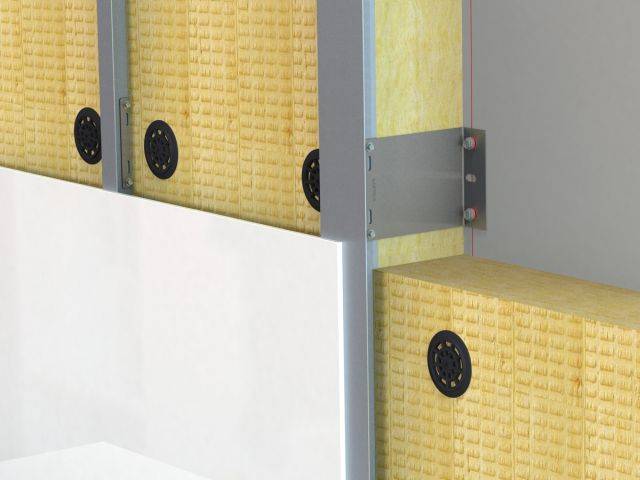

The ventilated façade one layer system consists of horizontal aluminium profiles and stainless steel brackets (MFT-FOX VTR).


The brackets are designed with both fixed and flexible point to allow for thermal expansion of the profile. The first layer vertical profiles are fastened to the stainless steel brackets with specially design stainless steel screws S-AD, to allow movement of the profiles relative to the wall brackets due to flexible points and to keep the profile connected to the wall brackets due to the fixed points.


Features and benefits:

  • Flexible design using fixed and flexible points.
  • 40 mm adjustment capability of the profile on the wall brackets.
  • Stainless steel brackets A4 1.4404 (316L grade) according to EN 1090-2; EN 10088.
  • Bracket length: 120–300 mm.
  • Brackets can be installed using a range of methods—anchors, screws and direct fastening.
  • Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
  • The isolator separates the substructure from the base material to reduce thermal bridging.
  • Substructures can be designed with PROFIS Façade to generate technically-sound and economically-optimized solutions.
  • Thermal bridge calculation in accordance with EN ISO 10211-1.

General information

Color

Silver

Finish

Powder coated

Material

Aluminium

Length

120 mm

300 mm

Manufacturer guidance

Bracket length, 120–300 mm.

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

G10/150 Steel framing system

G10/20 Steel framing system

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards

EN 755-2.

EN 573-3.

EN 12020-2.

EN 1090-3.

EN AW 6063 T66.

EN 1090.

Factory finish

Powder coating.

Colour

Silver.

Thermal break

EN ISO 10211-1.

Bracket length

120–300 mm.

Type

MFT-FOX VTR M / L.

Fastener

HIT-HY.

HRD-H.

HSA-R.

HST-R.

HUS-HR.

Show more

Type

MFT-L.

MFT-T.

Fastener

S-AD.

Accessories

None.

Isolation MFT-ISO 80 x 160 x 6 L.

Isolation MFT-ISO 80 x 80 x 6 M.
