MFT-FOX VTR-2L-Hanger-Undercut Anchor
Verified by manufacturer 29 days ago
Ventilated façade system.
Application
Suitable for ventilated façades in new and refurbishment projects with the following cladding materials:
- Fibre-cement.
- High pressure laminate (HPL).
- Ceramic and stone.
Description

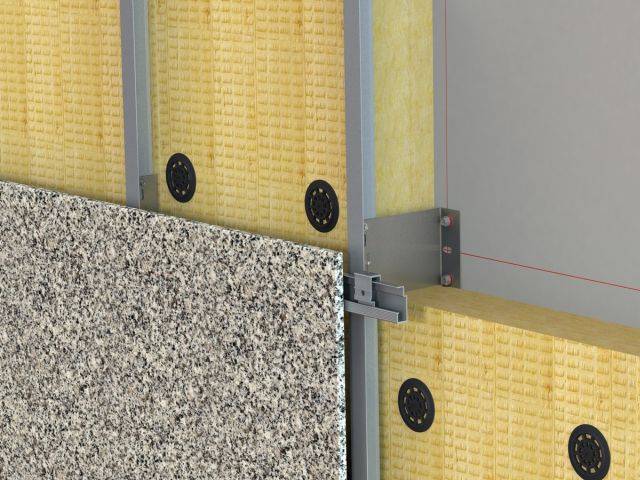

The ventilated façade two layer system consists of horizontal/ vertical aluminium profiles and stainless steel brackets (MFT-FOX VTR). The brackets are designed with both fixed and flexible point to allow for thermal expansion of the profile.
Features and benefits:
- Flexible design using fixed and flexible points.
- 40 mm adjustment capability of the profile on the wall brackets.
- Stainless steel brackets A4 1.4404 (316L grade) according to EN 1090-2; EN 10088.
- Bracket length: 120–300 mm.
- Brackets can be installed using a range of methods – anchors, screws and direct fastening.
- Aluminium profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
- The isolator separates the substructure from the base material to reduce thermal bridging.
- Substructures can be designed with PROFIS Façade to generate technically-sound and economically-optimized solutions.
- Thermal bridge calculation in accordance with EN ISO 10211-1.
- Can be used with all panels with approval for the undercut anchor fastening.
General information
Color | Silver |
Finish | Powder coated |
Material | Aluminium |
Length | 140 mm 320 mm Manufacturer guidanceBracket length, 140–320 mm. |
Uniclass | |
CAWS | G10/150 Steel framing system G10/20 Steel framing system H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Standards | EN 755-2.EN 573-3.EN 12020-2.EN 1090-3.EN AW 6063 T66.EN 1090. |
Factory finish | Powder coating. |
Colour | Silver. |
Thermal break | EN ISO 10211-1. |
Bracket length | 140–320 mm. |
Type | MFT-FOX VTR M / L. |
Fastener | HIT-HY. HRD-H. HSA-R. HST-R. HUS-HR. |
Type | MFT-HP 200. MFT-T. |
Fastener | S-AD. S-MD51LS. |
Connector fastener | S-MD51LS. |
Accessories | None. Hangers. Isolation MFT-ISO 80 x 160 x 6 L. Isolation MFT-ISO 80 x 80 x 6 M. MFT-JS. Guidance for specification option: 6 x 15 mm A4 fastener. |
