Suitable for ventilated façades in new and refurbishment projects with the following cladding materials:

  • Fibre-cement.
  • High pressure laminate (HPL).
  • Metal.
  • Plaster.
  • Terracotta.
  • Ceramic.
  • Composite and stone.

Description

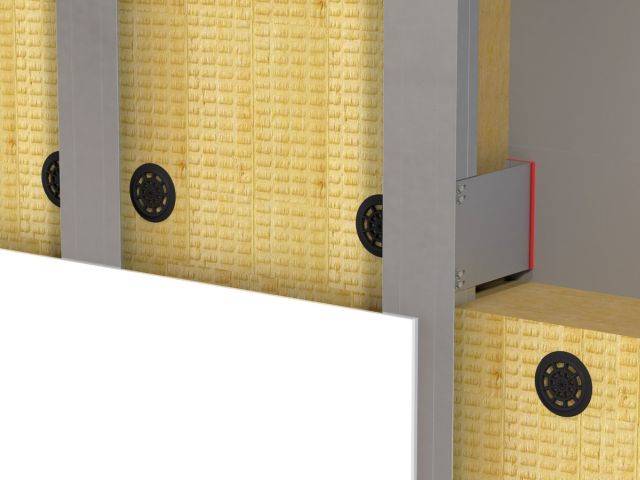

The Ventilated Façade one layer system consists of a specially designed bracket (MFT-S2S U/UI) and aluminium profiles (MFT-S2S TT and MFT-S2S RHS) for vertical substructure.


The brackets include different hole geometries in the base plate (for installing anchors or screws). When needed, the flexible point brackets are used in order to fix the vertical profiles, holding up the wind loads and allowing the thermal expansion of the profile. The brackets can be supplied with (pre-installed) or without isolators. The vertical profiles are connected to the support brackets with specially designed screws for ventilated façade, S-AD, which avoids creating compressing forces from the profile against the wall brackets and keeps the profile connected by the support bracket in place.


Features and benefits:

  • Millimetre adjustment capability of the profiles on the wall brackets.
  • Brackets are available from 80–300 mm or without isolators from 75–295 mm.
  • Only one support bracket per profile needed.
  • Profiles up to 4 m length fixed in only one support bracket.
  • Aluminium brackets and profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
  • The isolator separates the substructure from the base material reducing the thermal bridge (S2S UI).
  • Thermal bridge calculation in according with EN ISO 10211-1.

General information

Color

Grey

Material

Aluminium

Length

4000 mm

Manufacturer guidance

Profiles up to 4 m length fixed in only one support bracket, consult manufacturer for details.

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

G10/150 Steel framing system

G10/20 Steel framing system

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards

EN 755-2.

EN 573-3.

EN 12020-2.

EN 1090-3.

EN AW 6063 T66.

EN 1090.

Colour

Grey.

Thermal break

EN ISO 10211-1.

Type

MFT-S2S U M / L.

MFT-S2S UI M / L.

Bracket length

4 m.

Fastener

HIT-HY.

HRD-H.

HSA-R.

HST-R.

HUS-HR.

Show more

Type

MFT-S2S RHS.

MFT-S2S TT.

Fastener

S-AD.

Connector fastener

S-MD51LS.

Accessories

None.

Adapter plate MFT-S2S U AP L.

Adapter plate MFT-S2S UI AP L.

Connector MFT-S2S RHS PC.

Connector MFT-S2S TT PC.
