Application

Suitable for ventilated façades in new and refurbishment projects with the following cladding materials:

  • Fibre-cement.
  • High pressure laminate (HPL).
  • Ceramic and stone.

Description

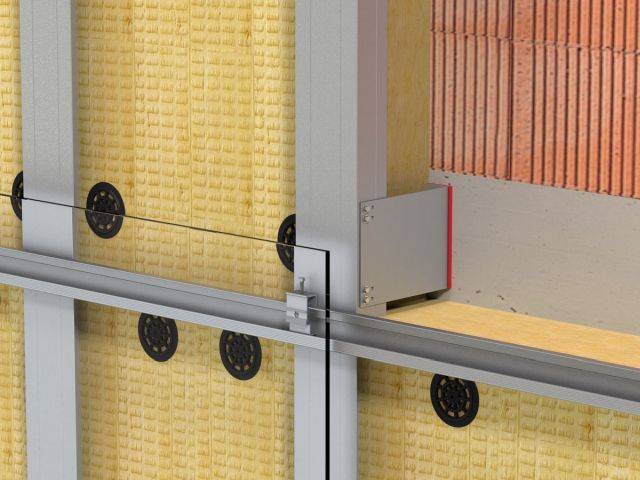

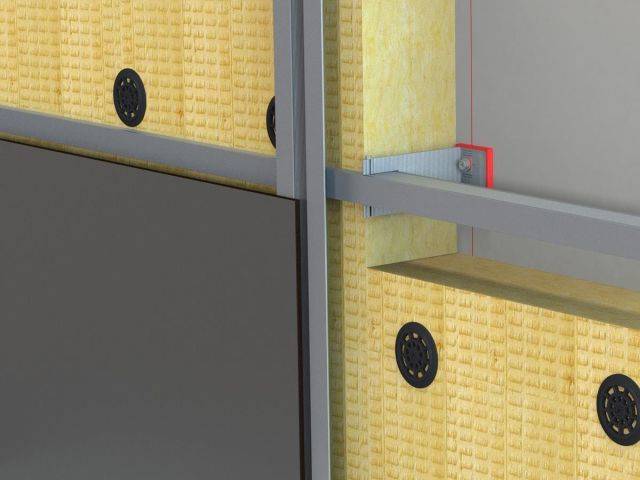

The ventilated façade two layers system consists of a specially designed bracket (MFT-S2S U/UI), and vertical/ horizontal aluminium profiles (MFT-S2S TT) for vertical substructure.


The brackets include different hole geometries in the base plate (for installing anchors or screws). When needed, the flexible point brackets, MFT-S2S U/UI, are used in order to fix the vertical profiles, holding up the wind loads and allowing the thermal expansion of the profile. The brackets can be supplied with (pre-installed) or without isolators. The vertical profiles are connected to the support brackets with specially designed screws for ventilated façade, S-AD, which avoids creating compressing forces from the profile against the wall brackets and keeps the profile connected by the support bracket in place.


Features and benefits:

  • 60 mm adjustment capability of the profiles on the wall brackets.
  • Brackets are available from 80–300 mm or without isolators from 75–295 mm.
  • Only one support bracket per profile needed.
  • Profiles up to 4 m length fixed in only one support bracket.
  • Aluminium brackets and profiles according to EN 755-2; EN 573-3; EN 12020-2; EN 1090-3; EN AW 6063 T66 and EN1090.
  • The isolator separates the substructure from the base material reducing the thermal bridge (S2S UI).
  • Pre-assembled isolator.
  • The isolator separates the substructure from the base material reducing the thermal bridge.
  • Substructures can be designed with PROFIS façade generating technical and economically optimized solutions.
  • Time and cost-saving solution due to the simpler and faster installation.
  • Thermal bridge calculation according to EN ISO 10211-1.

General information

Color

Grey

Material

Aluminium

Length

4000 mm

Manufacturer guidance

Profiles up to 4 m length fixed in only one support bracket.

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

G10/150 Steel framing system

G10/20 Steel framing system

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards

EN 755-2.

EN 573-3.

EN 12020-2.

EN 1090-3.

EN AW 6063 T66.

EN 1090.

Colour

Grey.

Thermal break

EN ISO 10211-1.

Type

MFT-S2S U M / L.

MFT-S2S UI M / L.

Length

4 m.

Fastener

HIT-HY.

HRD-H.

HSA-R.

HST-R.

HUS-HR.

Show more

Type

MFT HP 200.

MFT-S2S RHS.

MFT-S2S TT.

Fastener

S-AD.

S-MD51LS.

Connector fastener

S-MD51LS.

Accessories

None.

Adapter plate MFT-S2S U AP L.

Adapter plate MFT-S2S UI AP L.

Connector MFT-S2S RHS PC.

Connector MFT-S2S TT PC.

Show more
