Application

For tile, natural stone and surface coatings subject to high mechanical stresses. Suitable for both residential use, medium-duty and heavy-duty commercial applications.

Description

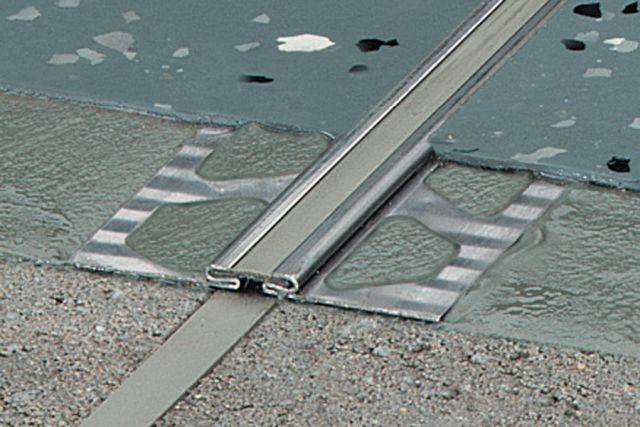

A 15 mm wide maintenance-free movement profile with edge protection consisting of trapezoid perforated anchoring legs. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Anchoring legs connected to a 6 mm wide synthetic rubber movement zone.

General information

Shape

T shaped.

Color

Grey

Black

Beige

Material

Steel

Guidance for specification option:

Stainless steel V2A = 1.4301 or Stainless steel V4A - 1.4404.

Warranty description

Five years

Size

-

Manufacturer guidance

2.5 mm x 2500 mm, 4.5 mm x 2500 mm, 6 mm x 2500 mmm

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Strip movement joints

Joint width

15 mm.

Edging

-

Material

Stainless steel V2A, 1.4301.

Stainless steel V4A, 1.4404.

Insert

-

Colour

Grey (RAL 7030).

Black (RAL 9011).

Light beige (RAL 1019).

Pastel grey (no RAL).

Product Reference

Schlüter®-DILEX-EKSB

Height

2.5 mm.

4.5 mm.

6 mm.

Fixing

Adhesive.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.
