Schlüter®-DILEX-EMP

Verified by manufacturer 4 months ago

Schlüter-Systems Ltd

12 mm visible, maintenance-free stainless steel movement profile.

Jump to:
+44 (0)1530 813396 Website

Application

Suitable for heavily used tile and natural stone surfaces set into mortar beds.

Description

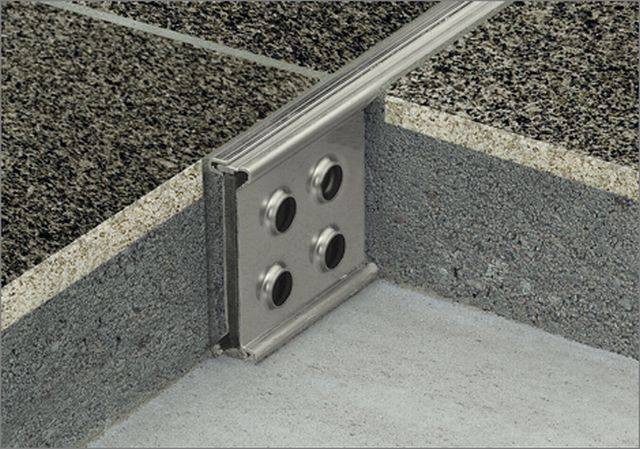

A 12 mm visible, maintenance free stainless steel movement profile which allows horizontal movement through a top and bottom tongue and groove connection. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Offers secure edge protection for surfaces exposed to continuous vehicle traffic.
  • Due to the tongue and groove mechanism, the profile cannot absorb vertical movement.

General information

Shape

Rectangular

Color

Grey

Material

Steel

Guidance for specification option:

Stainless steel V2A – 1.4301.

Warranty description

Five years

Size

12 x 35 mm

12 x 50 mm

12 x 65 mm

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Strip movement joints

Joint width

12 mm.

Edging

-

Material

Stainless steel V2A – 1.4301.

Finish

Stainless steel V2A – 1.4301.

Colour

Natural.

Insert

-

Material

Stainless steel V2A – 1.4301.

Colour

Natural.

Product Reference

Schlüter®-DILEX-EMP

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.
