Schlüter-DILEX-F - Movement Joint Profile

Verified by manufacturer 2 months ago

Schlüter-Systems Ltd

Narrow, prefabricated movement carrier profile with lateral, trapezoid perforated anchoring legs and is made of recycled rigid PVC.

Jump to:
+44 (0)1530 813396 Website

Application

  • Suitable for installations in tiled coverings.
  • Suitable for residential applications as well as in areas with moderate traffic loads, such as offices/ salesrooms or car showrooms.

Description

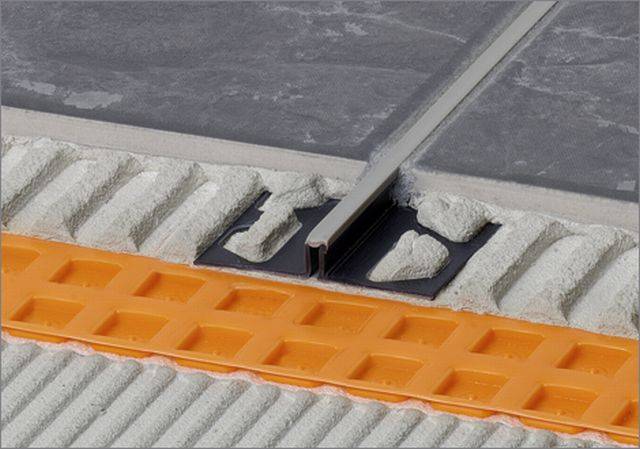

Schlüter-DILEX-F is a prefabricated plastic movement carrier profile with a very narrow, soft insert made of special silicone for installation in tiled coverings.


The lateral, trapezoid perforated anchoring legs, made of recycled rigid PVC, are secured in the tile adhesive beneath the tiles where they transmit occurring movements to the movement zone.


The movement zone absorbs compressive and tensile stresses. The subsequently introduced, special silicone movement zone with integrated anti-stretch thread, is approx. 3.5 mm wide when installed, matching common grout joint widths.


Features and benefits:

  • Available in ten different colours.
  • Movement zone absorbs compressive and tensile stresses.
  • Available in four different heights.

General information

Color

Grey

White

Black

Cream

Other

Finish

Matt

Material

Polyvinyl chloride (PVC)

Guidance for specification option:

Anchoring legs are manufactured from recycled PVC material.

Silicone

Guidance for specification option:

Cross linked silicone roll material with integrated anti-stretch thread. The insert can be replaced if it becomes damaged.

Shape

Other

Length

2500 mm

Width

3.5 mm

Height

9 mm

10 mm

11 mm

12.5 mm

Warranty description

Five year

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

M40/80 Strip movement joints

M40/825 Strip movement joints

M40/120 Mosaic to

M40/10 Natural stone covering to

M40/115 Natural stone covering to

M40/110 Tiling to

M40/5 Tiling to

Specification data - Strip movement joints

Joint width

3.5 mm.

Edging

-

Material

Polyvinyl chloride (PVC).

Finish

Natural.

Colour

Matte graphite black.

Insert

-

Material

Silicone.

Colour

Grey.

Pastel grey.

Brilliant white.

Light beige.

Graphite black.

Soft peach.

Cream.

Stone grey.

Dark anthracite.

Joint grey.

Height

9 mm.

10 mm.

11 mm.

12.5 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polyvinyl chloride (PVC)

Guidance for specification option:

Anchoring legs are manufactured from recycled PVC material.

Silicone

Guidance for specification option:

Cross linked silicone roll material with integrated anti-stretch thread. The insert can be replaced if it becomes damaged.

Manufacturing plant location

Recyclability

Materials can be recycled

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Schlüter-DILEX-FCS prefabricated movement carrier profile is made of recycled rigid PVC.

Expected Life

Five year
