Schlüter®-DILEX-EZ 6/9
Verified by manufacturer 6 months ago

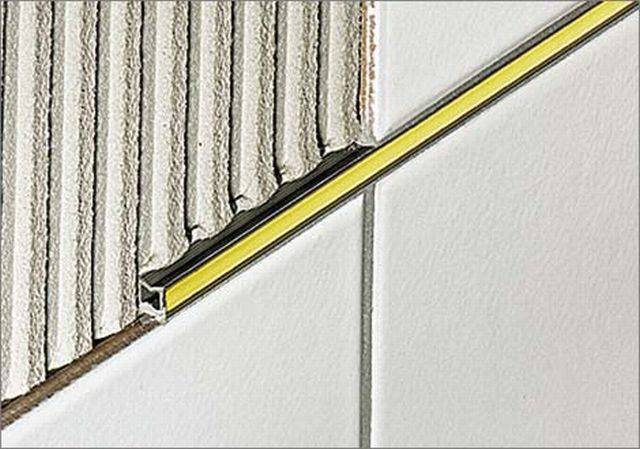

A 7 mm wide decorative stress relieving profile.
Application
For tile and natural stone surfaces, as well as other covering materials respective of thickness.
Description
A 7 mm wide decorative stress relieving profile with rigid PVC side sections connected and overlapped by two soft PVC surfaces at top and bottom. Installation is preferred by Schlüter-Systems trained installers.
Features and benefits:
- Flexible and can be used to form curved shapes quite easily.
- In addition to offering design options, they provide a movement joint within the tiled surface.
General information
Shape | Rectangular |
Color | Grey Yellow |
Finish | Colour coated |
Material | Polyvinyl chloride (PVC) Chrome Guidance for specification option: Inlay. Brass Guidance for specification option: Inlay. |
Warranty description | Five years |
Size | 7 x 6 x 2500 mm 7 x 9 x 2500 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to M40/5 Tiling to M40/80 Strip movement joints M40/825 Strip movement joints |
Product range |
Specification data - Strip movement joints
Joint width | 7 mm. |
Edging | |
Material | Polyvinyl chloride (PVC). |
Finish | Colour coated. |
Colour | Grey.Guidance for specification option: Brass inlay. Yellow.Guidance for specification option: Chrome inlay. |
Insert | |
Material | Brass.Chrome. |
Product Reference | Schlüter®-DILEX-EZ 6/9 |
Fixings | Adhesive. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceWaste and reclaimed material can be recycled where facilities exist. |
