Schlüter®-DILEX-HK - Wall to Floor Transition Profile

Verified by manufacturer 4 months ago

Schlüter-Systems Ltd

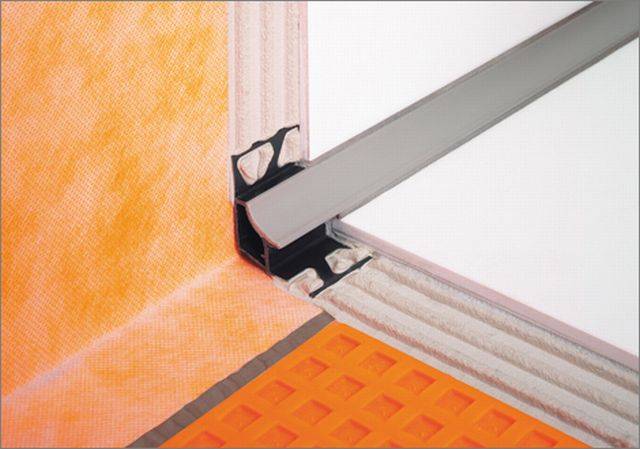

A prefabricated coved profile for flexible wall/ floor transitions.

Jump to:
+44 (0)1530 813396 Website

Application

Suitable for bathrooms, commercial kitchens, and food-processing plants. The profile’s dimensions allow for wall and floor tiles of different thicknesses.

Description

A prefabricated profile for flexible wall/ floor transitions. It has trapezoid perforated anchoring legs made of rigid PVC, connected to a cove shaped movement zone made of soft CPE which conform to hygienic requirements. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Features an insertion channel for cut floor tiles.
  • End covers, connectors, internal and external corners are available.

General information

Color

White

Guidance for specification option:

Brilliant White

Grey

Beige

Guidance for specification option:

Light Beige

Finish

Coated

Material

Polyvinyl chloride (PVC)

Shape

Other

Length

2500 mm

Width

18 mm

Guidance for specification option:

Radius = 18 mm

Height

12 mm

Warranty description

Five year

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Strip movement joints

Joint width

8 mm.

Edging

-

Material

Polyvinyl chloride (PVC).

Finish

Colour coated.

Colour

White (RAL 9033).

Grey (RAL 7030).

Light beige (RAL 1019).

Insert

-

Material

Polyvinyl chloride (PVC).

Colour

White (RAL 9033).

Grey (RAL 7030).

Light beige (RAL 1019).

Product Reference

Schlüter®-DILEX-HK

Accessories

Not required.

Connectors.

End covers.

External corners.

Internal corners.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Where product is reclaimed from the building the material can be recycled where facilities exist
