Schlüter®-DILEX-KS / AKSN - Movement Joint

Verified by manufacturer 4 months ago

Schlüter®-DILEX-KS

Schlüter-Systems Ltd Variant:

A 15 mm wide maintenance free movement profile.

Jump to:
+44 (0)1530 813396 Website

Application

DILEX-KS:

  • For tile, natural stone and surface coatings subject to high mechanical stresses.
  • Suitable for both residential use, medium-duty and heavy-duty commercial applications.

DILEX-AKSN:

  • Suited for use in warehouses, production facilities, shopping centres and car parks, or for floor surfaces maintained with cleaning machines.

Description

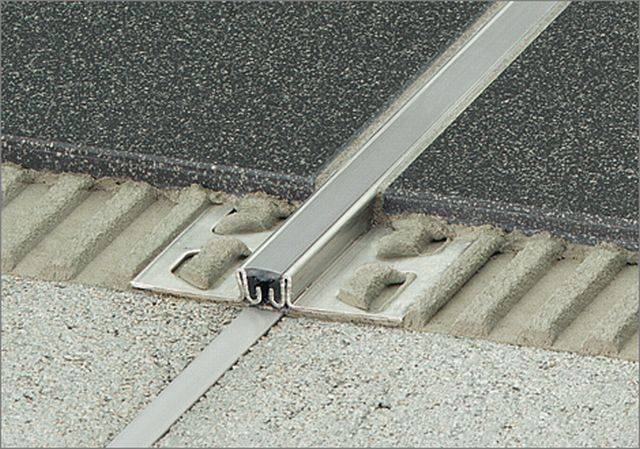

A 15 mm wide maintenance free movement profile. It has edge protection consisting of trapezoid-perforated anchoring legs, which are connected to a replaceable 11 mm wide synthetic rubber movement zone. Installation is preferred by Schlüter-Systems trained installers.



Features and benefits:

  • Specially treated to resist the growth of fungi and bacteria and require no special maintenance or care.
  • The profile’s rubber insert is replaceable in case of damage.
  • The side sections of the profile provide effective edge protection for the surface covering.


General information

Color

Cream

Grey

Guidance for specification option:

Joint grey, Grey, Pastel grey, Stone grey.

Black

Guidance for specification option:

Dark anthracite, Graphite black.

Beige

Guidance for specification option:

Light beige

Finish

Coated

Material

Aluminium

Steel

Guidance for specification option:

Stainless steel V2A- 1.4301 or Stainless steel V4A- 1.4404.

Shape

Other

Guidance for specification option:

T-shaped.

Length

2500 mm

Width

15 mm

Height

8 mm

10 mm

11 mm

12.5 mm

14 mm

Show more

Warranty description

Five year

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Strip movement joints

Joint width

15 mm.

Edging

-

Material

Aluminium.

Stainless steel V2A- 1.4301.

Stainless steel V4A- 1.4404.

Finish

Natural.

Colour

Grey.

Insert

-

Material

Rubber.

Colour

Cream (no RAL).

Dark anthracite (no RAL).

Joint grey (no RAL).

Grey (RAL 7030).

Black (RAL 9011).

Light beige (RAL 1019).

Pastel grey (no RAL).

Stone grey (no RAL).

Accessories

Cross joint insert.

Size:

10 x 15 x 2500 mm.

11 x 15 x 2500 mm.

12.5 x 15 x 2500 mm.

14 x 15 x 2500 mm.

16 x 15 x 2500 mm.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Where product is reclaimed from the building the material can be recycled where facilities exist.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

%

Guidance for specification option:

Waste and reclaimed material can be recycled where facilities exist.
