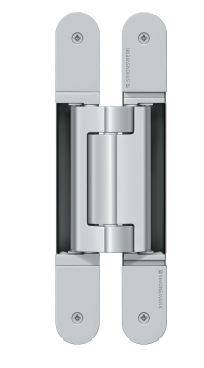

TECTUS TE 640 3D FR Hinge (HUKP-0202-03) - Door hinge

Verified by manufacturer 6 days ago

Hafele UK Ltd Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

Stainless steel concealed adjustable hinge

Jump to:
+44 (0)800 171 2907 Website

Application

  • Suitable for maximum door weight of 200 kg.
  • Suitable for use on fire doors.


Description

Stainless steel concealed adjustable 240 mm hinge.


Features and benefits:

  • Concealed adjustable hinge.
  • Integrated intumescent kit for un-rebated doors.
  • Minimum door thickness 40 mm.
  • Maximum door weight 200 kg with 180° opening angle.
  • 3D adjustment (side and height +/- 3.0 mm compression +/- 1.0 mm).
  • Maintenance-free slide bearings for timber or aluminium frames.
  • Certifire approved.

General information

Color

Silver

Black

Bronze

Finish

Matt

Guidance for specification option:

Black and nickel.

Satin

Guidance for specification option:

Stainless steel.

Polished

Guidance for specification option:

Nickel.

Material

Stainless steel

Steel

Length

240 mm

Width

80.5 mm

Height

35.5 mm

Warranty description

25 year

Uniclass

Pr_30_36_36_79 Single axis door hingesPrimary

CAWS

P21/7 Single-axis door hinges

P21/310 Single-axis door hinges

Product range

Hinges

Specification data - Single axis door hinges

Standard

To BS EN 1634-1 for FD30.

Classification grades (minimum)

-

Category of use

4.

Durability

7.

Test door mass

6.

Suitability for use on fire and smoke doors

1.

Guidance for specification option:

  • Up to 30 minute fire rating (WF No. 316349 suitable for use on timber FD30 fire doorset).
  • Use three hinges for fire doors.


Corrosion resistance

-

Manufacturer guidance

Corrosion resistance dependent on the finish.

Security, burglar resistance

1.

Hinge grade

14.

Size

80.5 x 240 x 35.5 mm.

Material and finish

Satin stainless steel, grade 1.4401 (316).

Colour

Matt black (107).

Satin stainless steel (126).

Polished nickel (038).

Matt nickel (125).

Light bronze (174).

Dark bronze (176).

Third-party accreditation

CE marked to certificate number CPR-229IFT.

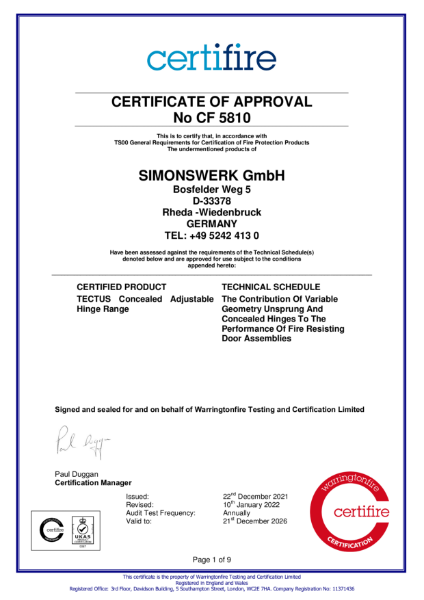

Certifire Certificate Approved Doc. No. CF 5810.

Third party certifications

Certifire Certificate

Certifire Certificate

Certifire CF5810

Literature

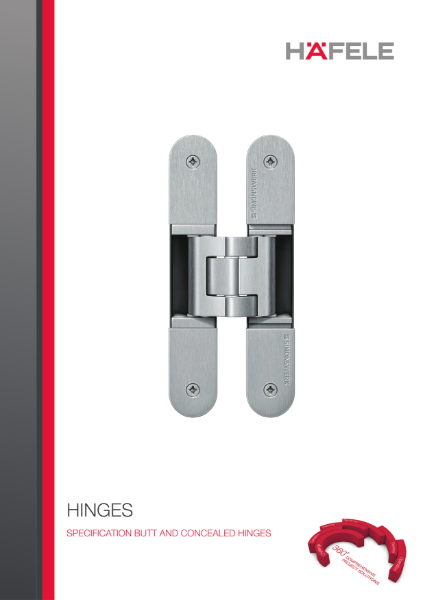

6. Project - Architectural Hinges

6. Project - Architectural Hinges

Similar products from Hafele UK Ltd

3 Knuckle Butt Hinge (HUKP-0102-01) - Single Axis Hinges

3 Knuckle Butt Hinge (HUKP-0102-01) - Single Axis Hinges

3 Knuckle Butt Hinge (HUKP-0102-02) - Single Axis Butt Hinges

3 Knuckle Butt Hinge (HUKP-0102-02) - Single Axis Butt Hinges

3 Knuckle Butt Hinge (HUKP-0102-04) - Single Axis Butt Hinges

3 Knuckle Butt Hinge (HUKP-0102-04) - Single Axis Butt Hinges

Butt Hinge CE EN14 (HUKP-0202-09) - Door hinge

Butt Hinge CE EN14 (HUKP-0202-09) - Door hinge

Butt Hinge CE EN14 (HUKP-0202-10) - Door hinge

Butt Hinge CE EN14 (HUKP-0202-10) - Door hinge

Gator Butt Hinge (HUKP-0202-07) - Door hinge

Gator Butt Hinge (HUKP-0202-07) - Door hinge

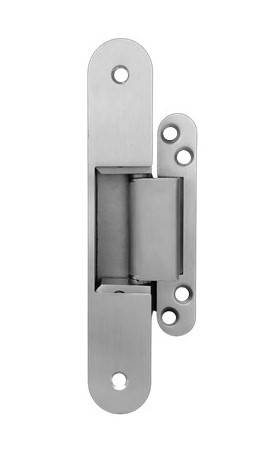

Projects 360° Concealed Hinge (HUKP-0302-03) - Door hinge

Projects 360° Concealed Hinge (HUKP-0302-03) - Door hinge

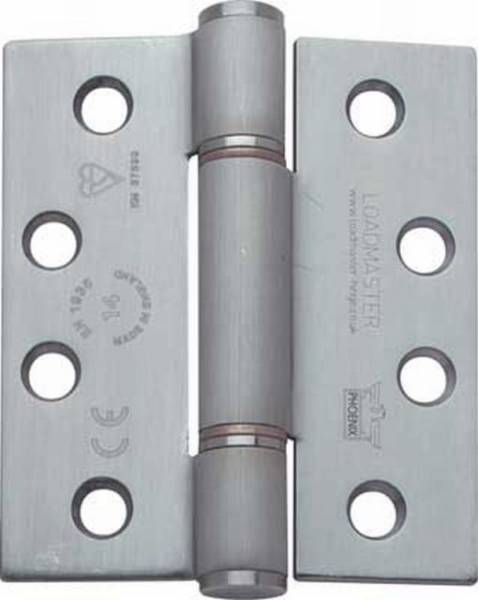

Stainless Steel Loadmaster Butt Hinges - Door hinge
