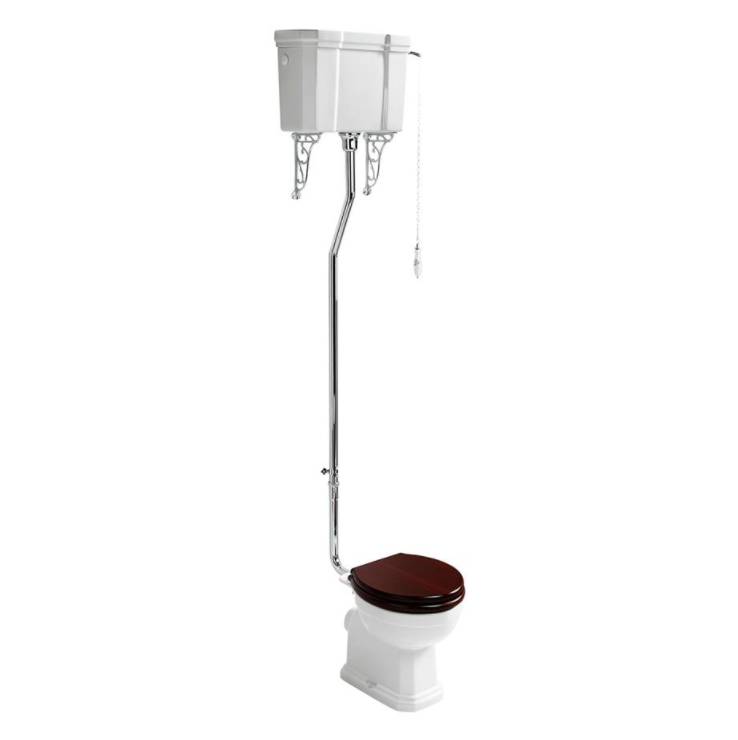

Waverley High Level/ Low level Toilet Bowl

Verified by manufacturer 3 months ago

Ideal Standard (UK) Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

High level/ low level toilet bowl with horizontal outlet.

Jump to:
+44 (0)870 122 8822 Website

Application

For use as high level/low level toilet bowl with horizontal outlet.

Description

Waverley high level/low level toilet bowl with horizontal outlet.


Features and benefits:

  • Domestic and hotel use.
  • Classic Edwardian styling.
  • For us with High level cistern with Ornate brackets (U470701)
  • WC pan screwed to floor and cistern screwed to wall.

General information

Color

White

Finish

Polished

Material

Vitreous china

Shape

Square

Length

480 mm

Width

360 mm

Height

400 mm

Warranty description

Lifetime

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Back-to-wall, washdown.

Connecting dimensions

To BS EN 33.

Pan height

400 mm.

Materials

-

Body

Vitreous china.

Finish and colour

Polished, white.

Water supply, outlet and seat holes

-

Water supply

Back inlet.

Outlet

Horizontal back outlet.

Dimensions

380 x 515 x 390 mm.

Guidance for specification option:

W x D x H.

Sustainability data

Material

Vitreous china

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

EPD

EPD

EPD - Ceramic Vitreous China
