By150N
By150N

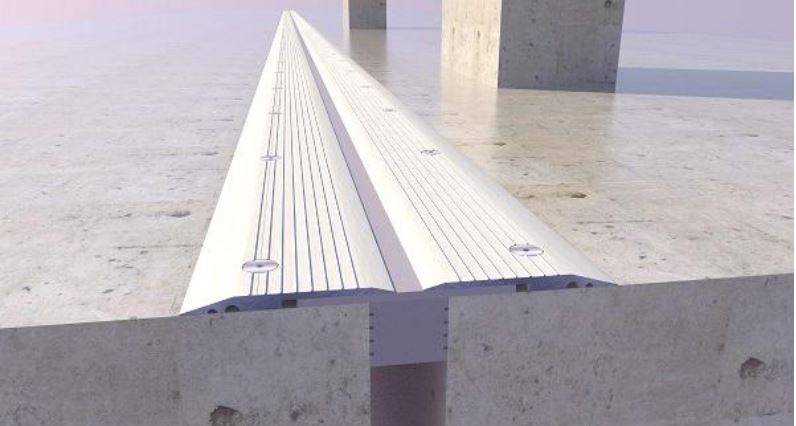

Carpark expansion joint with watertight concrete seal (surface).
Application
Suitable for indoor and outdoor application and can be used with compatible finishes such as:
- Epoxy.
- Concrete.
- Polished / Burnished concrete.
Use in waterproofing kilometers of expansion joints in commercial and public buildings including critical waterproofing of expansion joints in roof-top carparks and stadia.
Description
Also known as Brawny-NS/Aquo-P, ByNS/AqP is an innovative carpark expansion joint system which offers multi-directional movement including ‘differential-vertical’. The ByNS is designed as a platform over AquoP water seal. Some of its features include:
- Horizontal and vertical movement.
- Certified disability accessible.
- Surface mounted.
- High capacity.
- 100% waterproof seal available.
- P4 Slip resistance tested to AS 4568.
- Third party engineered.
- Multi-directional.
- Light vehicles.

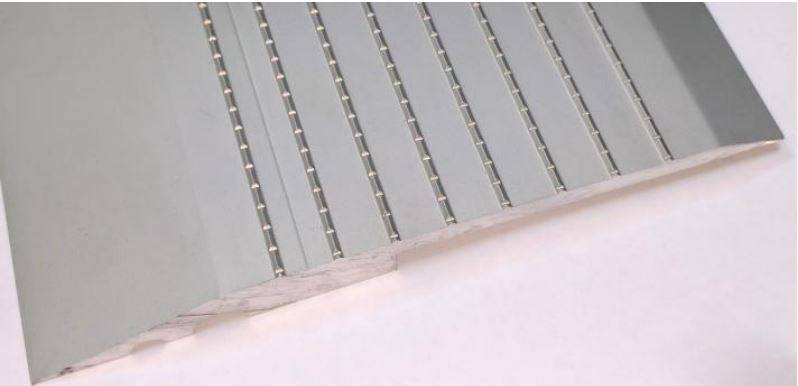

- Scratch resistance coverplate.
- Easy to clean and no white rust.
- UV stable and chemical resistant rubber pads.
- Fire resistance.
General information
Color | Clear |
Finish | Anodised |
Material | Aluminium. |
Length | 4800 mm |
Width | 150 mm 170 mm 200 mm |
Height | 11 mm |
Warranty description | Two years. |
Uniclass | |
NATSPEC National Classification System | 0657 Resin Based Seamless Flooring 0651 Resilient Finishes 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling |
SpecPack | 09630 Stone Flooring and Wall Panels 09400 Terrazzo 09650 Resilient Flooring 09300 Ceramic Tiling 03360 Concrete Finishes |
SpeedSpec | 09650 Resilient Flooring 09300 Ceramic Tiling 03365 Concrete Finishes |
Specification data - Metal section movement joints
Joint width (nominal) | 350 mm.Guidance for specification option: Overall exposed width. |
Edging | |
Material | Aluminium. |
Finish | Anodised. |
Colour | Clear. |
Insert | |
Material | EPDM Synthetic rubber. |
Colour | Grey. |
Standard | To AS 4586, AS 1664.2, AS 1170.0 and AS1170.1. |
Length | 4.8 m. |
Thickness | 11 mm. |
Material | 6061 T6 Structural Grade Aluminium. |
Rubber seal | EPDM Synthetic rubber. |
Width | 150 mm. Guidance for specification option: Rubber pad width. |
Accessories | High tensile Boron steel fasteners. |
Slip resistance class | Class D1 and Class P4. |
