Dz-H
Verified by manufacturer over a year ago
Dz150H
Dz150H

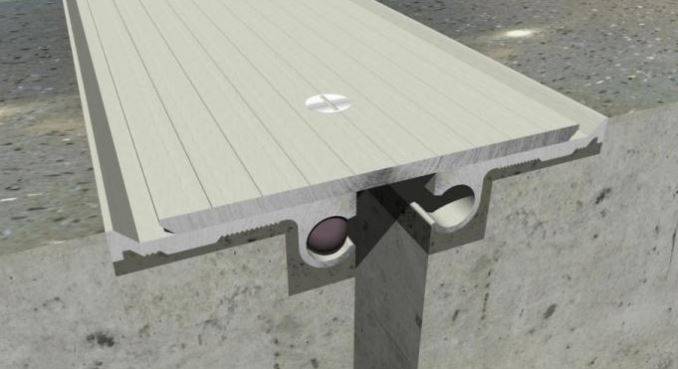

Low profile, heavy duty no bump expansion joint cover.
Application
Suitable for bulky-goods retail (ie Masters, Ikea) with rebating constraints. Stadiums, transit-centres, carparks and other buildings with suspended-slab concrete.
Description
Also known as Designer H, a revolutionary design combines slim visual width, low profile and hidden fixings. This heavy duty floor coverplate system is designed for use in polished concrete, roll-coat epoxy, tiles, vinyl and other floor finishes. Low profile and slender width allows for minimal substrate rebating. Leaves no visual grout line when applied to polish or trowel-finished concrete. Features include:
- Extra heavy duty.
- Concealed fixings.
- Low profile / Retrofit.
- High capacity.
- Multi-directional.
- Heavy vehicle.
General information
Color | Clear |
Finish | Anodised Aluminium Guidance for specification option: Optional finishes are bead blasted, stainless steel, linished, and polished. Bead Blasted Aluminium Stainless Steel Linished Aluminium Polished Aluminium |
Material | Aluminium. |
Length | 4800 mm |
Width | 150 mm 170 mm 190 mm 220 mm 260 mm |
Height | 15 mm |
Warranty description | Two years. Guidance for specification option: Longer warranty can be issued to check with manufacturer for details. |
Uniclass | |
NATSPEC National Classification System | 0657 Resin Based Seamless Flooring 0651 Resilient Finishes 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling |
SpecPack | 09630 Stone Flooring and Wall Panels 09400 Terrazzo 09650 Resilient Flooring 09300 Ceramic Tiling 03360 Concrete Finishes |
SpeedSpec | 09650 Resilient Flooring 09300 Ceramic Tiling 03365 Concrete Finishes |
Specification data - Metal section movement joints
Edging | |
Material | Aluminium. |
Finish | Anodized. |
Colour | Clear. |
Insert | |
Material | Aluminium. |
Colour | Clear. |
Slip resistance | Class P3 and Class P5. |
Length | 4.8 m. |
Thickness | 6 mm. |
Coverplate | 150 mm. Guidance for specification option: Coverplate width. |
Sustainability data
Country of product manufacture | Australia |
