Dz-MF
Verified by manufacturer over a year ago

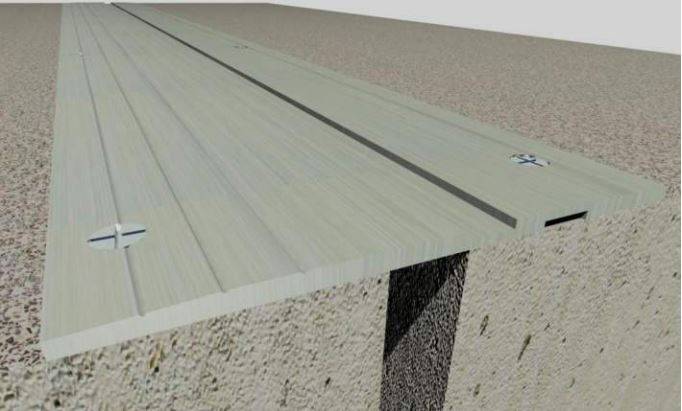

Two piece cost effective slab-on-ground cover strip.
Application
It is intended for slab-on-ground applications and is widely used in supermarkets & department stores. Suitable use for compatible finishes such as:
- Ceramic tiles.
- Vinyl.
- Vinyl tiles.
- Polished concrete.
Description
Also known as Designer MF, a two-piece expansion joint cover system intended for slab on ground application. It has a 3mm edge height for integration with vinyl/vinyl tiles, but can be packed or installed in rebates to allow for ceramic tiles or polished concrete floor finishes. DzMF is purposely designed for flush mounting which overcomes the horizontal impact issues of surface-mount systems. Some of its features include:
- Low profile / Retrofit.
- Flush mount.
- Smooth transition.
- Indoor and outdoor.
- Multi-directional.
- Indoor.
- Trolley safe.
- Service vehicle.
General information
Color | Clear Manufacturer guidanceAvailable in clear and coloured anodised finish. |
Finish | Anodised. |
Material | Aluminium |
Length | 3600 mm |
Width | 120 mm |
Height | 3 mm |
Warranty description | Two years. |
Uniclass | |
NATSPEC National Classification System | 0657 Resin Based Seamless Flooring 0651 Resilient Finishes 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling |
SpecPack | 09630 Stone Flooring and Wall Panels 09400 Terrazzo 09650 Resilient Flooring 09300 Ceramic Tiling 03360 Concrete Finishes |
SpeedSpec | 09650 Resilient Flooring 09300 Ceramic Tiling 03365 Concrete Finishes |
Specification data - Metal section movement joints
Joint width (nominal) | 128 mm.Guidance for specification option: Maximum exposed width. |
Edging | |
Material | Aluminium. |
Finish | Anodised. |
Colour | Clear. |
Length | 3.6 m. |
Cover plate finish/ colour | Anodised. |
Material: | Aluminium. |
Thickness | 3 - 4 mm. |
