Fx-C
Verified by manufacturer over a year ago
Fx50C
Fx50C

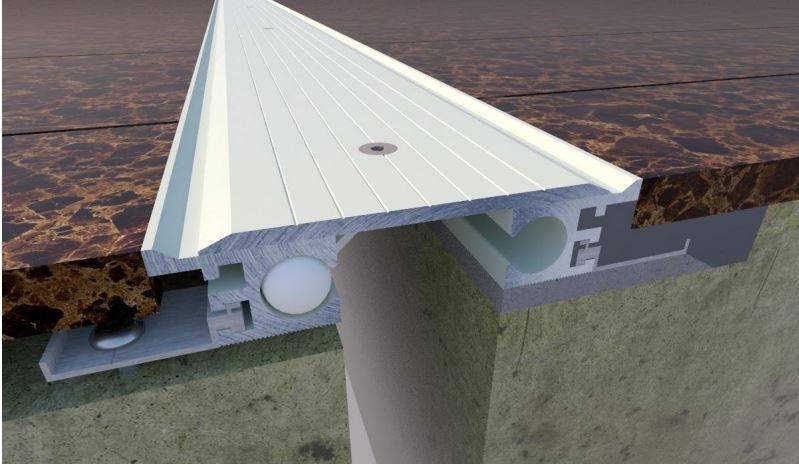

Three piece aluminium floor expansion joint cover.
Application
Indoor and outdoor. Used in retail centres, supermarket and department–store trading floors, airports terminals, apartment developments, public buildings etc.
Description
The most widely used floor coverplate expansion joint system. Offering multi-directional movement, and composite c-bars, it is compatible with most floor finishes. Features include:
- Concealed fixings.
- Thermally dynamic.
- High capacity.
- Low maintenance.
- Trolley safe.
General information
Color | Clear |
Finish | Anodised Aluminium Bead Blasted Aluminium Stainless Steel Linished Aluminium Polished Aluminium |
Material | Aluminium. |
Length | 4800 mm |
Width | 50 mm 70 mm 100 mm 120 mm |
Height | 27 mm 32 mm |
Warranty description | Two years. Guidance for specification option: Longer warranty can be issued to check with manufacturer for details. |
Uniclass | |
NATSPEC National Classification System | 0657 Resin Based Seamless Flooring 0651 Resilient Finishes 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling |
SpecPack | 09630 Stone Flooring and Wall Panels 09400 Terrazzo 09650 Resilient Flooring 09300 Ceramic Tiling 03360 Concrete Finishes |
SpeedSpec | 09650 Resilient Flooring 09300 Ceramic Tiling 03365 Concrete Finishes |
Specification data - Metal section movement joints
Edging | |
Material | Aluminium. |
Finish | Anodized. |
Colour | Clear. |
Insert | |
Material | Aluminium. |
Colour | Clear. |
Slip resistance | Class P3 and Class P5. |
Length | 4.8 m. |
Width | 50 mm. |
Thickness | 3 mm. |
Sustainability data
Country of product manufacture | Australia |
