Dz-T
Verified by manufacturer over a year ago
Tile inlay, low profile concealed coverplate expansion joint.
Application
Indoor and outdoor. Suitable applications in:
- Convention centres.
- Shopping malls.
- Airport terminals.
- Hotels.
- Museums.
Description

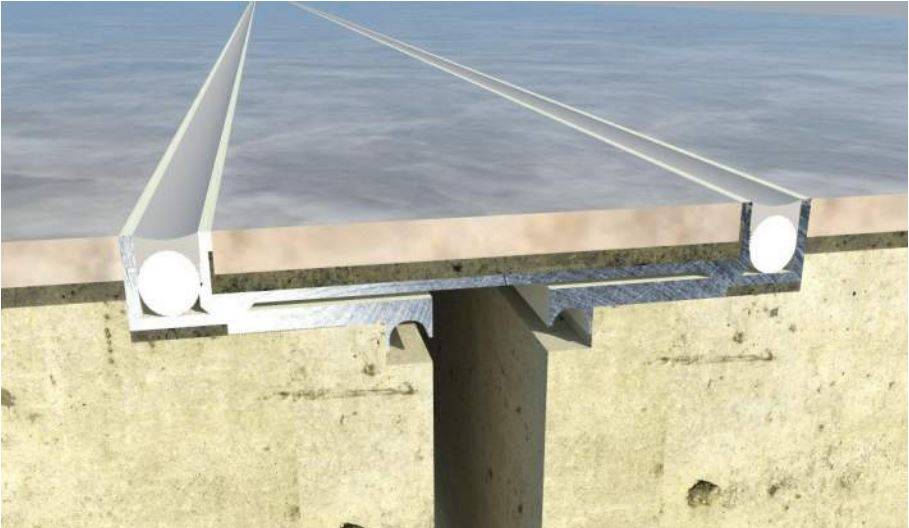

A coverplate system designed to house floor-finishes up to 16mm thick. The installed system presents minimal visual impact. Traditional recessed-coverplate EJ systems are quite deep and wide. They need large concrete rebates which can be difficult to achieve. DzT requires a substantially smaller concrete recess. It can house a range of floor finishes, and accommodates substantial movement. Features include:
- Thermal & shrinkage movement.
- Concealed fixings.
- Minimum visual impact.
- High Capacity.
- Multi-directional.
- Trolley safe
- Waterproof
- Fire-rated
General information
Color | Clear |
Finish | Mill. |
Material | Aluminium. |
Length | 4800 mm |
Width | 140 mm |
Height | 27 mm |
Warranty description | Two years. Guidance for specification option: Longer warranty can be issued to check with manufacturer for details. |
Uniclass | |
NATSPEC National Classification System | 0657 Resin Based Seamless Flooring 0651 Resilient Finishes 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling |
SpecPack | 09630 Stone Flooring and Wall Panels 09400 Terrazzo 09650 Resilient Flooring 09300 Ceramic Tiling 03360 Concrete Finishes |
SpeedSpec | 09650 Resilient Flooring 09300 Ceramic Tiling 03365 Concrete Finishes |
Specification data - Metal section movement joints
Edging | |
Material | Aluminium. |
Finish | Mill. |
Colour | Clear. |
Insert | |
Material | Aluminium. |
Colour | Clear. |
Product code | Dz140T. |
Cover plate finish/ colour | Mill. |
Length | 4.8 m. |
Width | 140 mm. |
Sustainability data
Country of product manufacture | Australia |
