Dz-D
Verified by manufacturer over a year ago
Dz100D
Dz100D

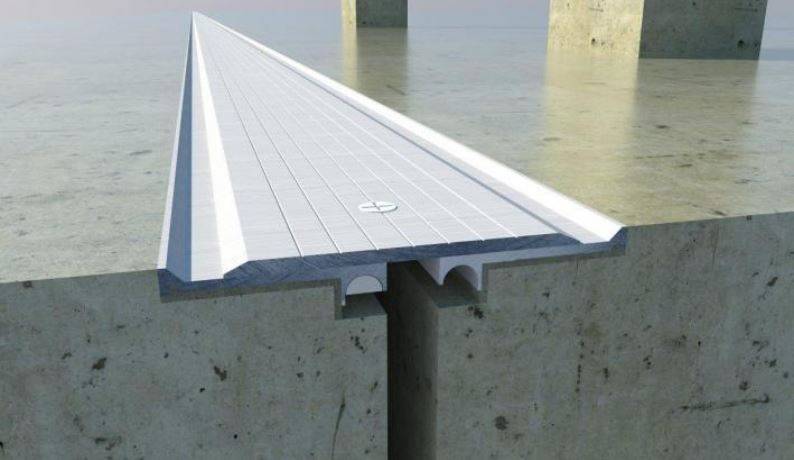

Low-profile, sleek floor joint cover.
Application
Suitable for indoor and outdoor application such as:
- Supermarket.
- High-end retail.
- Commercial fit-outs with rebating constraints.
- Stadiums.
- Transit-centres.
Designed for use in polished concrete, roll-coat epoxy, tiles, vinyl and other floor finishes.
Suitable for buildings with suspended-slab or slab-on-ground concrete.
Description
Also known as Designer D, a low-profile sleek floor joint system with skim visual width and hidden fixing. Low profile and slender width allows for minimal substrate rebating. Leaves no visual grout line when applied to polish or trowel-finished concrete. Some of its features include include:
- Concealed fixings.
- Low profile / Retrofit.
- High capacity.
- Low maintenance.
- Trolley safe.
- Multi-directional.
- No bump.
- Fire-rated.
- Waterproof.
General information
Color | Clear |
Finish | Anodised Aluminium Guidance for specification option: Optional finishes are bead blasted, stainless steel, linished, and Polished. Bead Blasted Aluminium Stainless Steel Linished Aluminium Polished Aluminium |
Material | Aluminium. |
Length | 4800 mm |
Width | 100 mm 120 mm 165 mm |
Height | 7 mm |
Warranty description | Two years. Guidance for specification option: Longer warranty can be issued to check with manufacturer for details. |
Uniclass | |
NATSPEC National Classification System | 0657 Resin Based Seamless Flooring 0652 Carpets 0651 Resilient Finishes 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling |
SpecPack | 09685 Carpet tiles 09680 Carpet 09650 Resilient Flooring 09630 Stone Flooring and Wall Panels 09400 Terrazzo 09300 Ceramic Tiling 03360 Concrete Finishes |
SpeedSpec | 09680 Carpet and Carpet Tiles 09650 Resilient Flooring 09630 Stone Flooring and Wall Panels 09300 Ceramic Tiling 03365 Concrete Finishes |
Specification data - Metal section movement joints
Edging | |
Material | Aluminium. |
Finish | Anodised. |
Colour | Clear. |
Insert | |
Material | Aluminium. |
Colour | Clear. |
Material: | Aluminium. Stainless steel. Guidance for specification option: Stainless steel finish option available for Dz DS. |
CoverWidth | 100 mm. |
Thickness | 4 mm. |
Length | 4.8 m. Guidance for specification option: Standard length. |
Slip resistance | Class P3 and Class P5. |
Width | 206 mm (max). Guidance for specification option: Exposed width. |
Sustainability data
Country of product manufacture | Australia |
