Compare

Mo-DT

Name: Mo-DT
Brand: Unison Joints
SKU: b3iFKHMJRteNXBXEPNJhBG

Verified by manufacturer over a year ago

Unison Joints

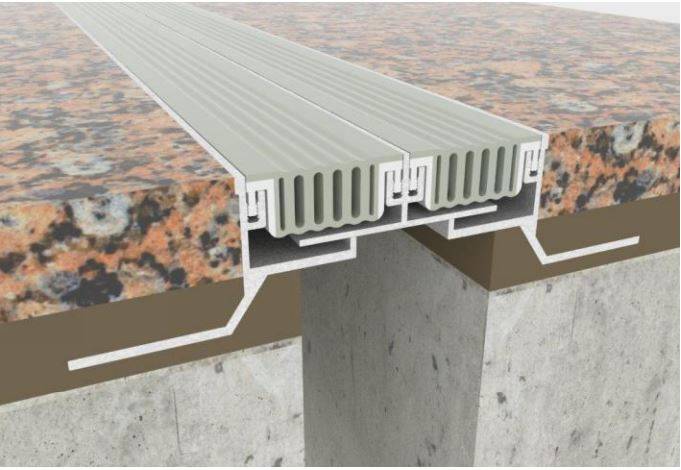

High profile thermoplastic gasket dual seal expansion joint.

Jump to:

+61 07 3907 0500 Website

Application

Suitable for indoor and outdoor application and can be used with compatible finishes such as:

Tiles.
Epoxy.
Stone/Granite.
Terrazite.

Designed for hospital, food preparation areas, laboratories, cleaners rooms or wherever hygiene is imperative.

Can use anti-bacteria installation solution as an option during application.

Description

Also known as Morpho DT -the seal is purposely designed with smooth ripples to allow the seal to open, rather than stretch & break. Some of its features include:

Architectural floor seal.
Santoprene primary seal.
Weather / Anti-pathogenic seal.
UV stable.
No bump transition.
Indoor and outdoor.
Multi-directional.
Indoor and outdoor.
Multi-directional.
Trolley safe.
Pathogenic.
Waterproof.

General information

Color	Beige Black Grey Manufacturer guidance Other colours are available by request, to check with the manufacturer.
Material	Thermoplastic
Length	4800 mm
Width	100 mm 150 mm
Height	49 mm
Warranty description	Two years.

Uniclass	Pr_35_90_53_53 Metal section movement jointsPrimary
NATSPEC National Classification System	0657 Resin Based Seamless Flooring 0651 Resilient Finishes 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling
SpecPack	09630 Stone Flooring and Wall Panels 09400 Terrazzo 09650 Resilient Flooring 09300 Ceramic Tiling 03360 Concrete Finishes
SpeedSpec	09650 Resilient Flooring 09300 Ceramic Tiling 03365 Concrete Finishes

Specification data - Metal section movement joints

Joint width (nominal)	128 mm. Guidance for specification option: Maximum exposed width for Mo50DT. 171 mm. Guidance for specification option: Maximum exposed width for Mo75DT.
Edging	-
Material	Thermoplastic.
Finish	Anodized.
Colour	Nature.
Insert	-
Colour	Black. Grey. Beige.

Length	4.8 m.
Material	Dual compound thermoplastic seal.
Seal colour	Black. Grey. Beige. Manufacturer guidance Other colour options are available by request.
Product code	Mo50DT. Guidance for specification option: Seal width at 50 mm x 2. Mo75DT . Guidance for specification option: Seal width at 75 mm x 2.

Mo-DT

Application

Description

General information

Color

Manufacturer guidance

Material

Length

Width

Height

Warranty description

Uniclass

NATSPEC National Classification System

SpecPack

SpeedSpec

Specification data - Metal section movement joints

Joint width (nominal)

128 mm.

171 mm.

Edging

Material

Thermoplastic.

Finish

Anodized.

Colour

Nature.

Insert

Colour

Black.

Grey.

Beige.

Length

Material

Seal colour

Manufacturer guidance

Product code
