Si-R

Name: Si-R
Brand: Unison Joints
SKU: uracZg2MYYKthSqVwhD12x

Verified by manufacturer over a year ago

Si170R

Unison Joints

Seismic roof expansion joint cover.

Jump to:

+61 07 3907 0500 Website

Application

All types of roof structures with hobs.

Description

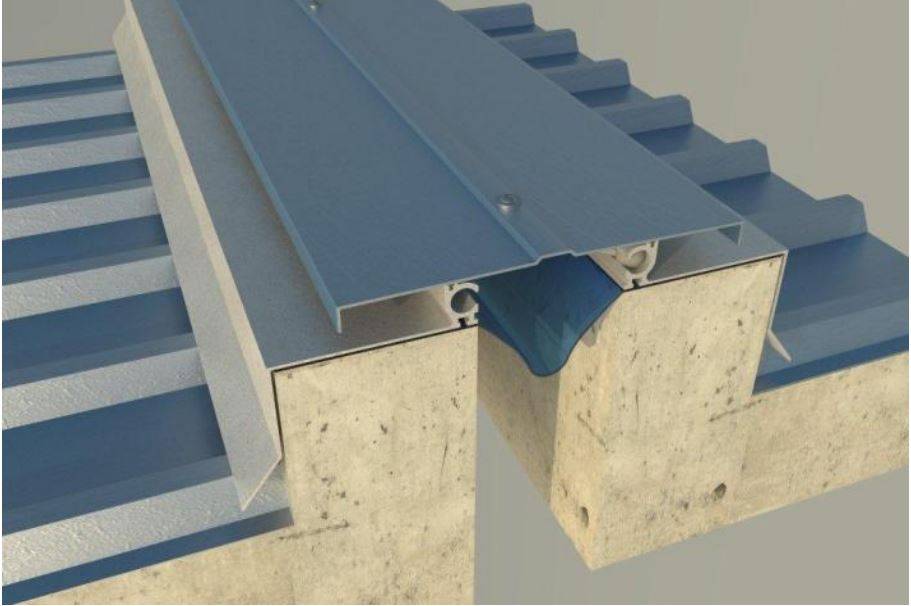

Also known as SeiMax R, a roof coverplate expansion joint system. The system is a ridge-cap-shaped aluminium coverplate system using cbar-type coupling. It is not trafficable. A secondary water seal is included. Drainage spigots are available as an accessory item. The system can be supplied in a roof-wall version. Some of its features include:

Roof seismic joint.
Primary & secondary weather seal.
Thermal & seismic movement.
Waterproof.
Multi-directional.
Seismic.
Fire rated.

General information

Color	Clear Other
Finish	Anodised Aluminium Powder Coated Aluminium Manufacturer guidance Can be powder-coated to a range of colours.
Material	Aluminium.
Length	4800 mm
Width	170 mm 270 mm 370 mm 470 mm 570 mm 670 mm Show more
Height	100 mm
Warranty description	Two years. Manufacturer guidance Longer warranty can be issued to check with manufacturer for details.

Uniclass	Pr_35_90_53_53 Metal section movement jointsPrimary
NATSPEC National Classification System	0657 Resin Based Seamless Flooring 0651 Resilient Finishes 0632 Stone and Terrazzo Tiling 0631 Ceramic Tiling
SpecPack	09630 Stone Flooring and Wall Panels 09400 Terrazzo 09650 Resilient Flooring 09300 Ceramic Tiling 03360 Concrete Finishes
SpeedSpec	09650 Resilient Flooring 09300 Ceramic Tiling 03365 Concrete Finishes

Specification data - Metal section movement joints

Edging	-
Material	Aluminium.
Finish	Anodised.
Colour	Clear
Insert	-
Material	Aluminium.
Colour	Clear. Pantone colour.

OverallWidth	360 mm (max).
Length	4.8 m.
Cover plate finish/ colour	Anodised. Guidance for specification option: Available in clear anodised finish. Powder coated. Guidance for specification option: Can be powder coated to a range of colors. To check with the manufacturer. Mill finish.
Material:	Aluminium.
CoverWidth	170 mm. Guidance for specification option: Coverplate width.
Thickness	48 mm.
Accessories	Drainage spigots.

Sustainability data

Country of product manufacture	Australia
