Vt-P, Vt-PN
Verified by manufacturer over a year ago

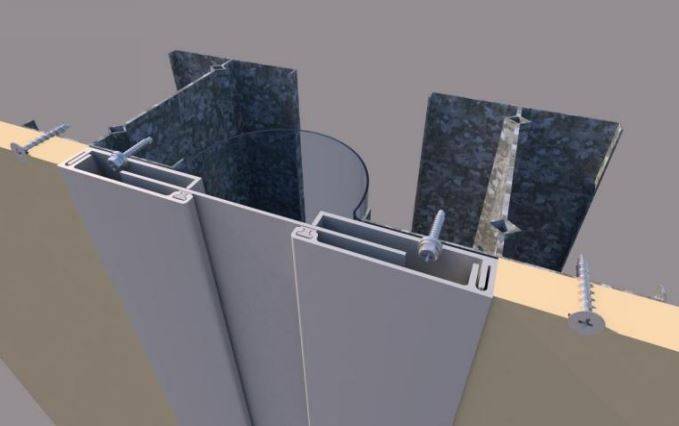

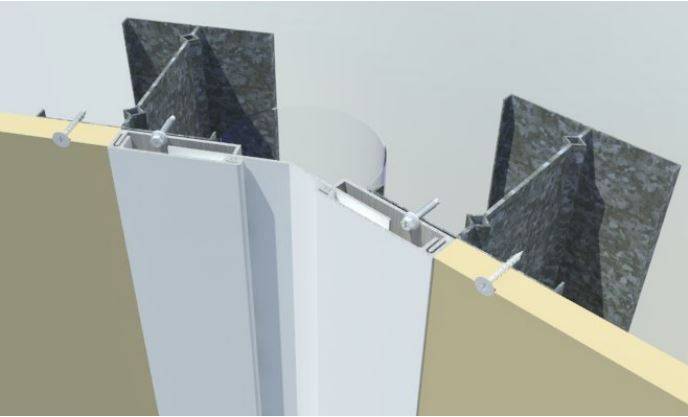

Aluminium wall seismic and expansion joint cover.
Application
Suitable for indoor and outdoor application.
- Can be installed in walls or ceilings for internal or external application.
- Suitable application for corners, obtuse or acute angle where structural movement joints are designed.
- With optional PVC gland for external applications.
Designed to be integrated with finishes such as:
- Plasterboard.
- Render.
- Aluminium-panel, and others.
Description
Also known as Vertos P, a coverplate - type wall expansion joint system. Design with adequate seismic function. Features include:
- Concealed fixings.
- Seismic movement.
- Trolley safe.
- Multi-directional.
- Water resistant.
- Fire-rated.
General information
Color | Clear Other |
Finish | Anodised |
Material | Aluminium. |
Length | 3600 mm |
Width | 90 mm 110 mm 130 mm 150 mm 180 mm |
Height | 18 mm |
Warranty description | Two years. Guidance for specification option: Longer warranty can be issued to check with manufacturer for details. |
Uniclass | |
NATSPEC National Classification System | 0532 Suspended Ceilings - Flush Lined 0531 Suspended Ceilings - Combined 0511 Lining 0434 Cladding - Flat Sheets and Panels 0431 Cladding - Combined |
SpecPack | 07430 Sandwich Panels 09500 Suspended Ceilings 09260 Dry Wall Partitions and Linings 09250 Plasterboard 09210 Cement Render |
SpeedSpec | 09500 Suspended Ceilings 09260 Dry Wall Partitions and Linings 09250 Plasterboard 09210 Cement Render 07462 Cladding External Walls |
Specification data - Metal section movement joints
Edging | |
Material | Aluminium. |
Finish | Anodised.Manufacturer guidanceClear anodised for the optional finish. |
Colour | Clear.Pantone colour. |
Insert | |
Material | Aluminium. |
Colour | Clear.Pantone colour. |
Cover plate finish/ colour | Clear anodised. Powder coated. |
Material: | Aluminium. Stainless steel. |
Length | 3.6 m. Guidance for specification option: Standard length. |
Thickness | 1.6 mm. |
Product code | Vt130P. Guidance for specification option: Cover plate width: 130 mm. Vt150P. Guidance for specification option: Cover plate width: 150 mm. Vt180P. Guidance for specification option: Cover plate width: 180 mm. Vt220P. Guidance for specification option: Cover plate width: 220 mm. Vt300P. Guidance for specification option: Cover plate width: 300 mm. |
Sustainability data
Country of product manufacture | Australia |
