801 Floor Expansion Joint Cover Plate

Verified by manufacturer 3 months ago

Inpro

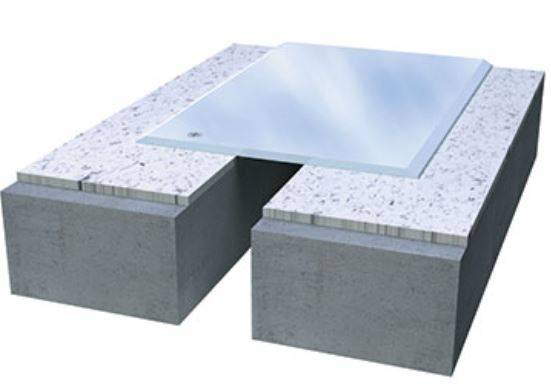

Floor or wall expansion joint cover plate.

Jump to:
07494249485 Website

Application

Suitable for floor or wall applications.

Description

Floor or wall expansion joint cover plate designed with bevelled edges for pedestrian safety.


Features and benefits:

  • Designed with bevelled edges for pedestrian safety.
  • Easy to install.
  • Economical solution for retrofit and surface mount installations.
  • Mill finish aluminium as standard.
  • Brushed and anti-slip finishes are also available.
  • Also available in stainless steel and brass.
  • Wider widths are optionally available.
  • Optional vapour barrier and fire rating.

General information

Color

Silver

Guidance for specification option:

Aluminium.

Finish

Mill

Guidance for specification option:

Mill finish on floor.

Anodized

Guidance for specification option:

Clear anodized on walls.

Material

Aluminium

Warranty description

Five year

Guidance for specification option:

Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations.

Uniclass

Pr_35_90_53_53 Metal section movement jointsPrimary

CAWS

M10/476 Metal section movement joints

M13/375 Strip movement joints

M13/395 Metal section movement joints

M40/80 Strip movement joints

M40/825 Strip movement joints

M40/835 Metal section movement joints

M41/445 Strip movement joints

M41/465 Metal section movement joints

M50/740 Edgings and cover strips

M51/510 Edgings and cover strips

Product range

Expansion Joint Systems

Specification data - Metal section movement joints

Joint width (nominal)

25–102 mm.

Insert

-

Material

Aluminium.

Guidance for specification option:

Mill finish aluminium as standard.

Stainless steel.

Brass.

Colour

Natural.

Floor to Floor

Not required.

801-A01-025.

Guidance for specification option:

Joint width: 25 mm; Frame height: 3 mm; Sightline: 105 mm.

801-A01-050.

Guidance for specification option:

Joint width: 51 mm; Frame height: 3 mm; Sightline: 143 mm.

801-A01-075.

Guidance for specification option:

Joint width: 76 mm; Frame height: 6 mm; Sightline: 235 mm.

801-A01-075.

Guidance for specification option:

Joint width: 102 mm; Frame height: 6 mm; Sightline: 235 mm.

Floor to Wall

Not required.

801-A07-050.

Guidance for specification option:

Joint width: 51 mm; Frame height: 3 mm; Sightline: 97 mm.

801-A07-075.

Guidance for specification option:

Joint width: 76 mm; Frame height: 6 mm; Sightline: 189 mm.

801-A07-100.

Guidance for specification option:

Joint width: 102 mm; Frame height: 6 mm; Sightline: 189 mm.

801-A07-025

Options

Not required.

Mineral wool and silicone system.

Guidance for specification option:

801-A01.

Vapor barrier.

Guidance for specification option:

801-A01.

Joints

50 mm.

75 mm.

100 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %
