Frutti Cubicles - Toilet cubicles

Verified by manufacturer 4 months ago

Washroom Washroom Ltd

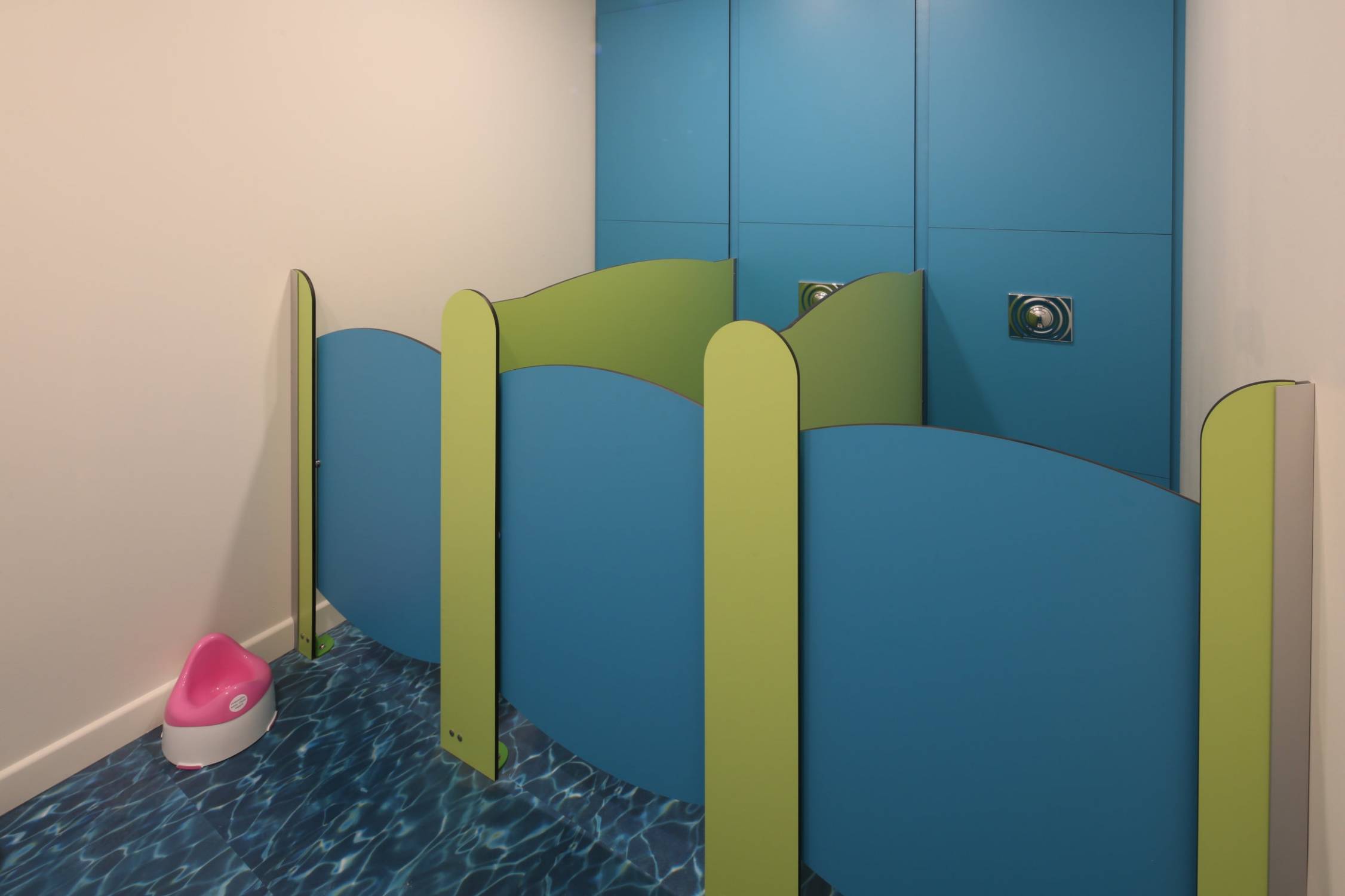

A freestanding solid grade laminate (SGL) toilet cubicle.

Jump to:
BOS
+44 (0) 800 999 8888 Website

Application

Suitable for primary school washrooms.

Description

Features and benefits:

  • A washroom solution for younger children, who may require shorter cubicles.
  • Manufactured in solid grade laminate (SGL) for maximum durability.
  • In place of the headrail, the pilasters are supported by a floor-mounted bracket for added rigidity.
  • Panels can be machined to produce the impression of a range of fruits when combined with digital screen printing.

General information

Color

-

Manufacturer guidance

Arpa, Abet,Sonae, Formica, Polyrey.

Material

Solid grade laminate (SGL)

Size

-

Manufacturer guidance

1200 (top of pilaster), 1050 (top of door) x 1500-1800 mm

Length

1050 mm

Width

-

Manufacturer guidance

1500–1800 mm.

Height

1200 mm

Warranty description

One year

Manufacturer guidance

From practical completion

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Product range

Frutti

Specification data - Panel cubicle systems

Panels

12/ 13 mm solid grade laminate.

Panel supports

Floor mounted bracket for added rigidity.

Pilasters fixed to powder-coated steel fixing plate.

Pilasters

12/ 13 mm solid grade laminate with floor mounted bracket for added rigidity.

Doors

12/ 13 mm solid grade laminate.

Lippings

Exposed edges machined to a smooth finish with radiused safety corner details to doors and pilasters.

Hardware

Stainless steel 4 inch butt hinges and satin anodized aluminium full length channels.

System accessories

Grab rail.

Manufacturer guidance

Cubicles are available in configurations to comply with Approved Document M (E&W), complete with outward opening doors. A standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails are also available.

Colour

-

Manufacturer guidance

Arpa, Abet,Sonae, Formica, Polyrey.

Sustainability data

Country of material origin

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2015

3
