Luminoso Acrylic Cubicles - Shower cubicles
Verified by manufacturer 3 months ago

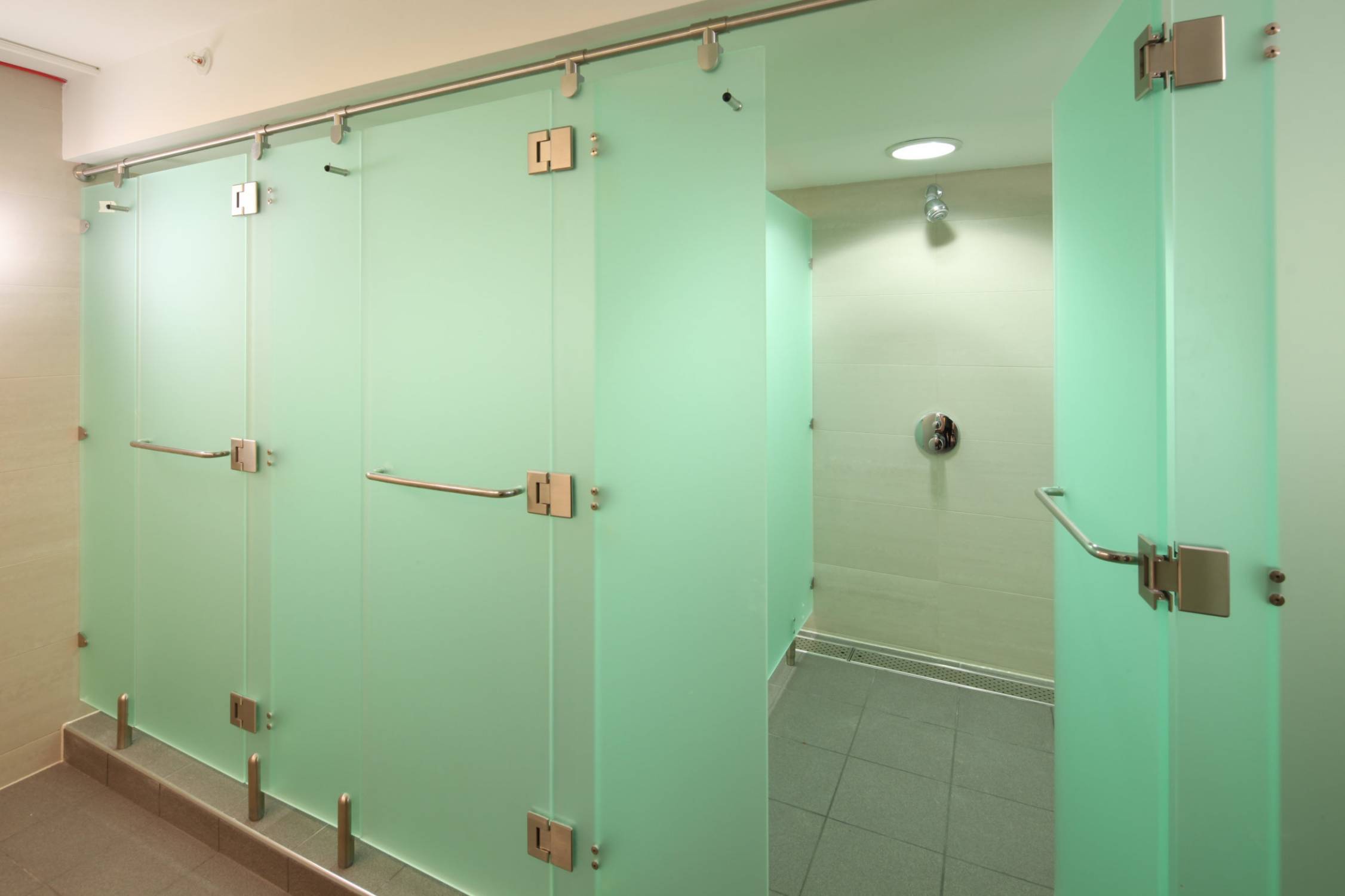

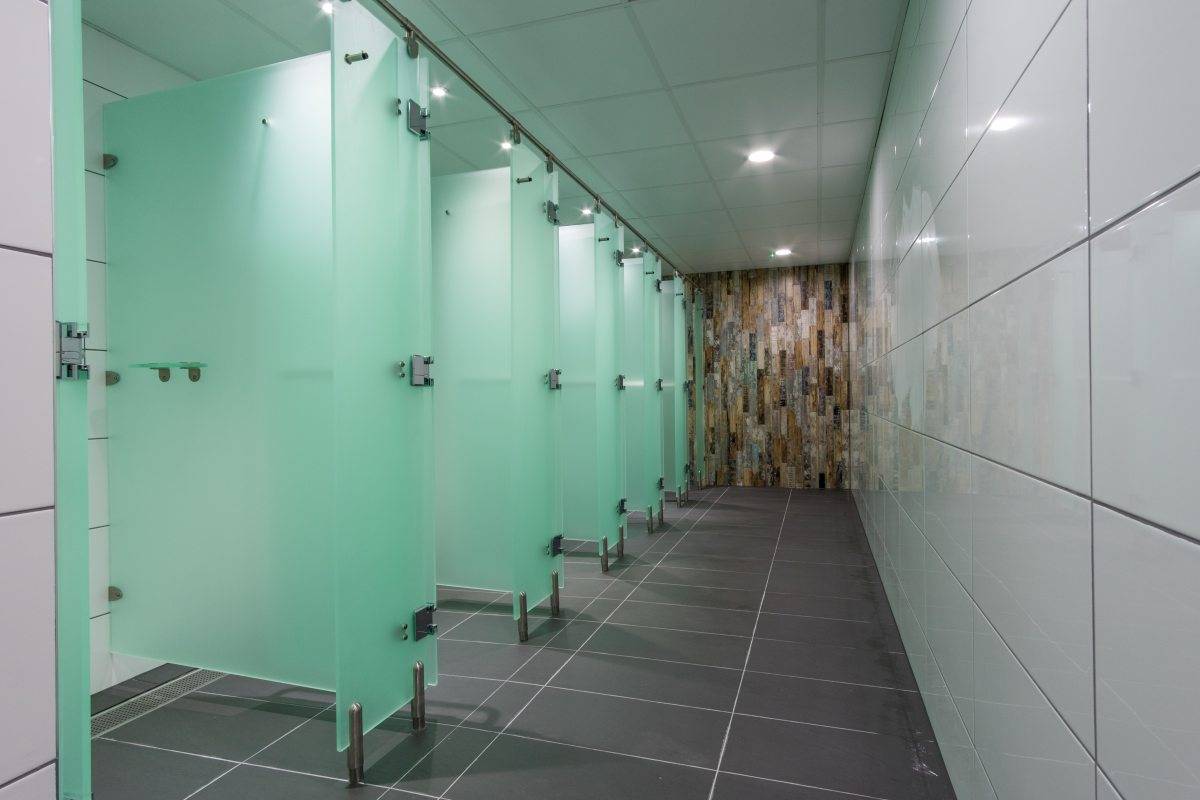

Cast acrylic shower cubicle
Application
Suitable for both private and public shower cubicle facilities.
Description
Features and benefits:
- Cast acrylic construction provides a uniform finish to the panels for a more polished overall appearance.
- Available in different textures and colours, including opaque options (subject to minimum order quantities).
- Stainless steel tubular headrail.
General information
Material | Acrylic |
Size | Manufacturer guidanceFloor clearance: 80 mm. |
Width | 1500 mm |
Height | 2026 mm |
Warranty description | One year Manufacturer guidanceFrom practical completion |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Product range |
Specification data - Panel cubicle systems
Panels | 12 mm green cast acrylic. |
Panel supports | Tubular and rounded-off design, manufactured from stainless steel, fixed to pilaster assembly.Adjustable to suit uneven floor levels. |
Pilasters | 12 mm green cast acrylic. |
Doors | 12 mm green cast acrylic. |
Lippings | Edges machined to smooth finish. |
Hardware | Chrome nickel plated double swing hinges (self closing from 25 degrees).Stainless steel channel cleats.Coat hook.Pull handle to the outside of each door. |
System accessories | Manufacturer guidanceA standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails are also available. |
Product Reference | Luminoso Acrylic Shower Cubicles |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 3 |
 IFC | IFC2X3 | 2 |
Literature
Complete washroom solutions: cubicles, lockers, vanities and ducting
Case studies
Third Space, Islington
Third Space, Tower Bridge
Weston House, High Holborn
