Easy Glass SMART+ Balustrade - Glass Balustrade System

Verified by manufacturer 2 months ago

Q-railing

Fully adjustable glass balustrade system for glass up to 21.52 mm thick.

Jump to:
+44 (0)1782 711676 Website

Application

Suitable for light to medium use in both indoor and outdoor applications.



Installation:

  • First fix the base channel of the railing to the floor, then insert the inlay and the outer rubber of the Q-disc System.
  • Then position the glass. For larger glass panels, Q-Railing recommend using their MOD 1002 installation plate, which prevents the glass from tilting or the inlays from slipping.
  • Next insert the Q-discs between the glass panel and the inlays. A clicking sound confirms that the disc is correctly seated.
  • To secure the glass, tighten the discs with the Q-tool and a torque wrench.
  • Finally, insert the inner rubber into the base channel of the glass balustrade.


Description

Easy Glass Smart+ is available in two versions: one base channel for top mounting and one for fascia mounting. The adjustable version of the Q-disc System is available for glass panels between 17.52 and 21.52 mm. For maximum flexibility, the Smart+ range also features matching corners, end caps, claddings and trims as well as drainage profiles and shims for your glass balustrade. To complete the desired effect, ask us to powder-coat the raw aluminium components in a RAL colour of your choice.


The adjustable Q-disc System allows users to compensate for any unevenness and precisely align the individual glass panels of the glass balustrade. Conveniently, the assembly and alignment of the glass balustrade can be carried out entirely from the balcony.


Features and benefit:

  • Symmetrical top-mount base channel.
  • A choice of base channel fixing methods.
  • Adjustable Q-disc System for glass realignment (by up to 0.6°) and securing.
  • Powder-coating of the aluminium components on request.
  • Optional: trims for a seamless transition between base channel and cladding or flooring.


General information

Color

Other

Silver

Finish

Other

Brushed

Anodized

Mill

Powder-coated

Material

Aluminium

Glass

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/560 Proprietary balustrades

L30/55 Proprietary balustrades

Specification data - Balustrade and guarding systems

Infills

Glass, 17.52—21.52 mm.

Guidance for specification option:

Adjustable Q-disc System for glass realignment (by up to 0.6°) and securing.

Insert glass type and thickness required to ensure appropriate seals are specified.

Rails

-

Handrails

Glass mounted handrails.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Cap rails.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

U-profiles.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Edge protection.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Fixing to parent structure

Guidance for specification option:

A choice of base channel fixing methods. Consult manufacturer for options and insert requirements.

Samples required

Product samples and prototypes.

Aluminium finishes

Brushed, anodized.

Mill.

Powder-coated.

Guidance for specification option:

 Powder-coating of the aluminium components on request.

Mounting

Top mounting.

Fascia mounting.

Accessories

Not required.

Trims.

Guidance for specification option:

Optional: trims for a seamless transition between base channel and cladding or flooring.

Sustainability data

Contains Red List materials

No

Recyclability

100%

Literature

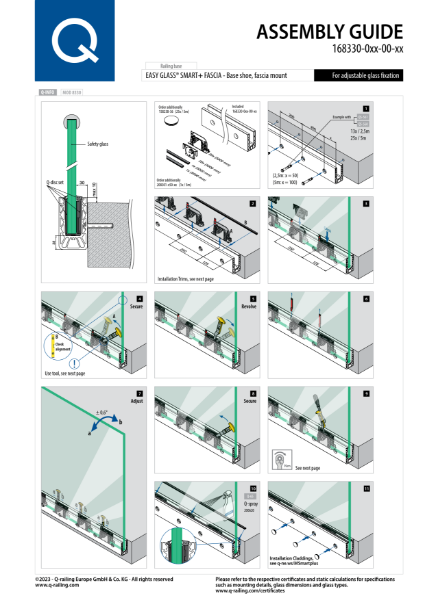

Easy Glass Smart+ fascia-mount manual

Easy Glass Smart+ fascia-mount manual

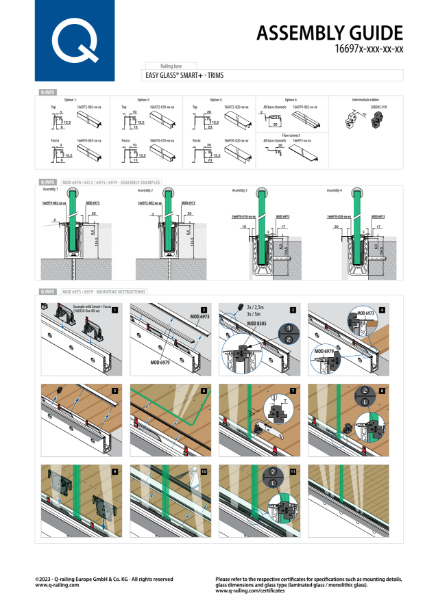

Easy Glass Smart+ trims manual

Easy Glass Smart+ trims manual
