Easy Glass® UP Balustrade - Glass railing system

Verified by manufacturer 2 months ago

Standard, top mounted

Q-railing Variant:

Full glass railing system with slimline base shoes for unobstructed views.

Jump to:
+44 (0)1782 711676 Website

Application

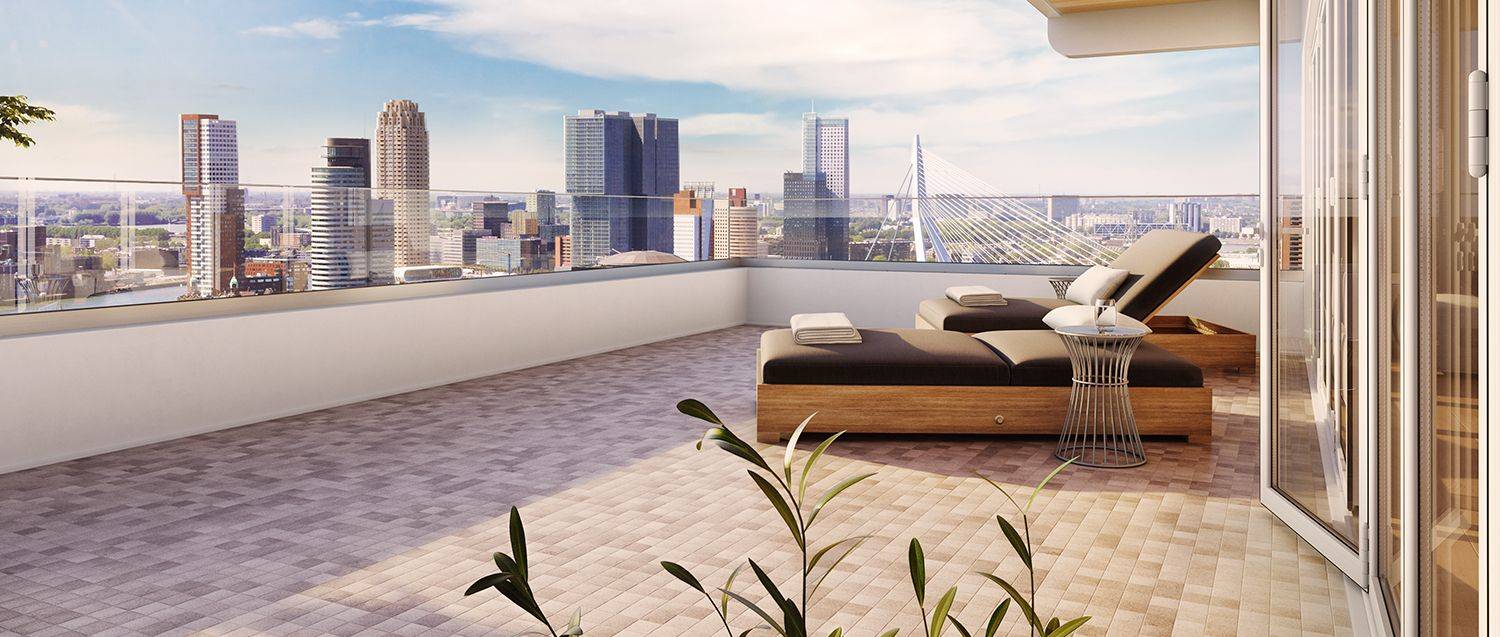

Suitable for light to medium indoor and outdoor use on balustrades for parapet walls. Includes apartment balconies, roof terraces and penthouses.

Description

Full glass railing system with slimline base shoes for unobstructed views.


Features and benefits:

  • Near-invisible balcony railings thanks to a slimline base shoe.
  • Top mounted or fascia mounted, with matching corner solutions and end caps.
  • Aluminium base shoes (mill finish or brushed anodized).
  • Glass infills up to 800 mm high and thickness of 12–17.52 mm.
  • Top finish: Cap rail, U-profile or edge protection.
  • Quick and easy installation: Balcony railings can be installed from inside parapet walls with no need for assembly stands or scaffolding.
  • Safety Wedge system included for rapid installation of glass panels.
  • Custom-bent profiles upon request.
  • The system has undergone extensive testing and received multiple safety and quality marks.
  • LED lighting can be added using Q-lights Linear Light for atmosphere and safety (specified separately).

General information

Color

Silver

Guidance for specification option:

Aluminium.

Finish

Brushed

Guidance for specification option:

Aluminium only.

Mill

Guidance for specification option:

Aluminium only.

Material

Aluminium

Glass

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Infills

Glass.

Guidance for specification option:

Up to 800 mm high and thickness between 12 and 17.52 mm; insert requirements.

Rails

-

Handrails

Required.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Required, with Q-lights Linear Light.

Guidance for specification option:

Illuminated handrails specified separately.

Not required.

Base rails

Fixed, brushed anodized finish.

Fixed, mill finish.

Manufacturer guidance

MOD.6924

Minimum edge distance to anchor (horizontal) applies; consult manufacturer's literature for details.

Profile (visible): 80 x 45 mm.

Fixing to parent structure

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Samples required

Product samples.

Prototypes or mock-ups.

Third party accreditation

AbP certification, test certificate number P-2017-3011; CTE-tested, test report number 17/282-104.

Guidance for specification option:

Detailed testing reports and calculations available on request.

Capping rail

Required.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Required, with Q-lights Linear Light.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Not required.

Accessories

None.

Additional handrails.

Guidance for specification option:

E.g. for mounting on wall(s) opposite stair panels. To match handrail as defined above unless specified otherwise.

Additional handrails with Q-lights Linear Light.

Guidance for specification option:

LED-lit handrail (linear strips), specified separately.

Other.

Guidance for specification option:

Consult manufacturer's literature for options and insert requirements.

Sustainability data

Contains Red List materials

No

Recyclability

100%
