Easy Glass® VIEW Juliet Balustrade - Juliet balcony system

Verified by manufacturer 2 months ago

Window frame mounted

Q-railing

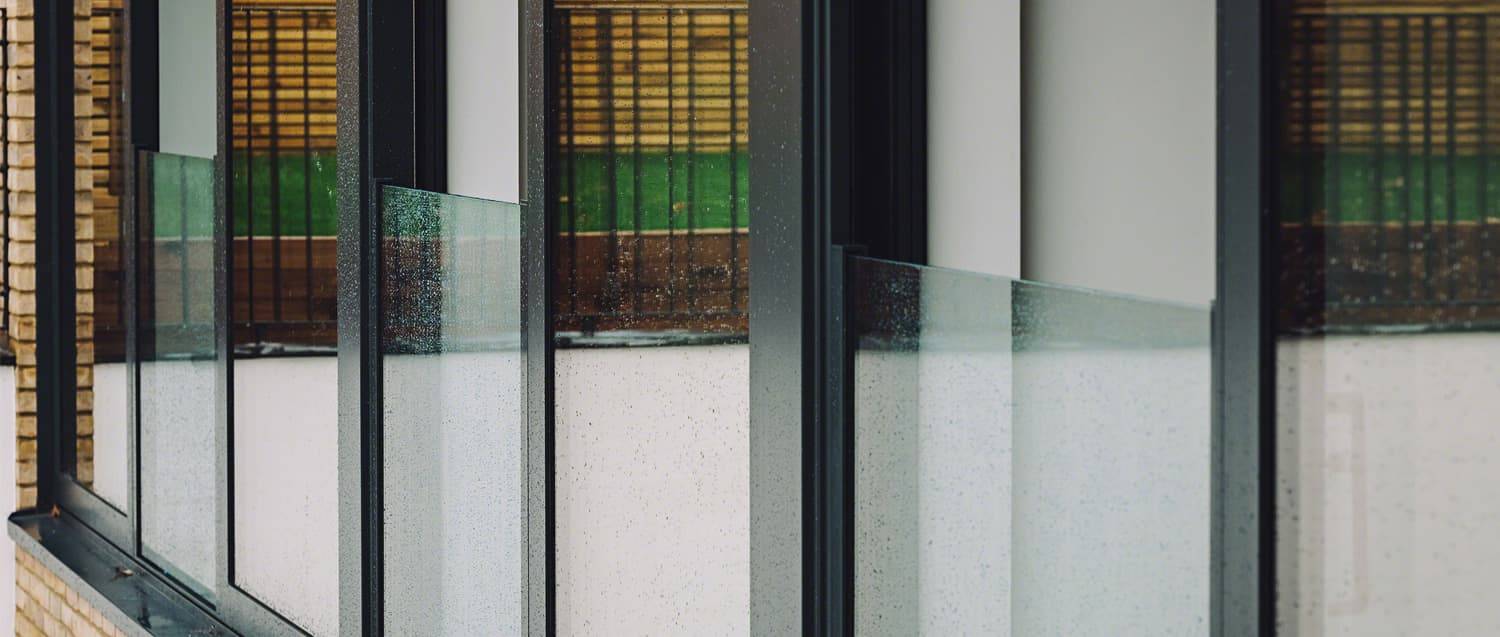

Full glass Juliet balcony balustrade system.

Jump to:
+44 (0)1782 711676 Website

Application

Light to medium indoor and outdoor use Juliet balcony, in private residences, apartment buildings and hotels.

Description

Full glass Juliet balcony balustrade system.


Features and benefits:

  • Structure that consists of almost nothing but glass, provides excellent levels of transparency with nothing to obscure the view.
  • Minimalist design, sleek, vertically installed profiles that span distances up to 2800 mm.
  • Fascia-mounted or reveal fix.
  • Glass thickness: 12–21.51 mm.
  • Designed for maximum versatility and ease of use.
  • The same wall profile can be used to install a Juliet balcony in three different scenarios: onto a facade, onto a door frame or between reveals.
  • Click feature simplifies the glass-mounting process.
  • Aluminium elements can be powder coated.
  • Resists line loads of up to 1 kN/m (using 16.76 mm-thick glass).
  • Profiles can be cut to project requirements.
  • Design criteria: 0.74 kN/m.
  • Extensively tested.

General information

Color

Silver

Guidance for specification option:

Aluminium.

Other

Guidance for specification option:

Aluminium, powder-coated.

Finish

Powder-coated

Satin

Polished

Anodized

Material

Aluminium

Glass

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/560 Proprietary balustrades

L30/55 Proprietary balustrades

Specification data - Balustrade and guarding systems

Uprights

Aluminium, matt silver effect.

Aluminium, polyester powder-coated.

Guidance for specification option:

Any RAL colour, insert requirements.

Aluminium, unfinished (raw).

Guidance for specification option:

Cut-to-size variants only.

Infills

Glass, 12–21.51 mm, with top edge protection.

Guidance for specification option:

Insert glass type, width and thickness required to ensure appropriate seals are specified.


Maximum span: 2800 mm.

Fixing to parent structure

-

Manufacturer guidance

Direct fixing to window frame.

Consult manufacturer for options according to window frame structure and insert requirements.

Components

Manufacturer's standard.

Guidance for specification option:

Includes two profiles for 1100 mm-tall glass panels, two top end caps, four cover caps, two bottom end caps.

Specify colour and finish separately.

Third-party certification

AbP certification, test certificate number P-2017-30404; CTE-tested, test report number 17/13713-106.

Sustainability data

Contains Red List materials

No

Recyclability

100%

Literature

Systems Brochure

Systems Brochure
