MOD 0763 BLOK adapter Balustrade - Glass adapter

Verified by manufacturer 3 months ago

Q-railing

Glass balustrade with multifunctional block fixing.

Jump to:
+44 (0)1782 711676 Website

Application

Suitable for light to medium indoor and outdoor use as a balustrade or with stairs.

Description

Glass balustrade with multifunctional block fixing.


Features and benefits:

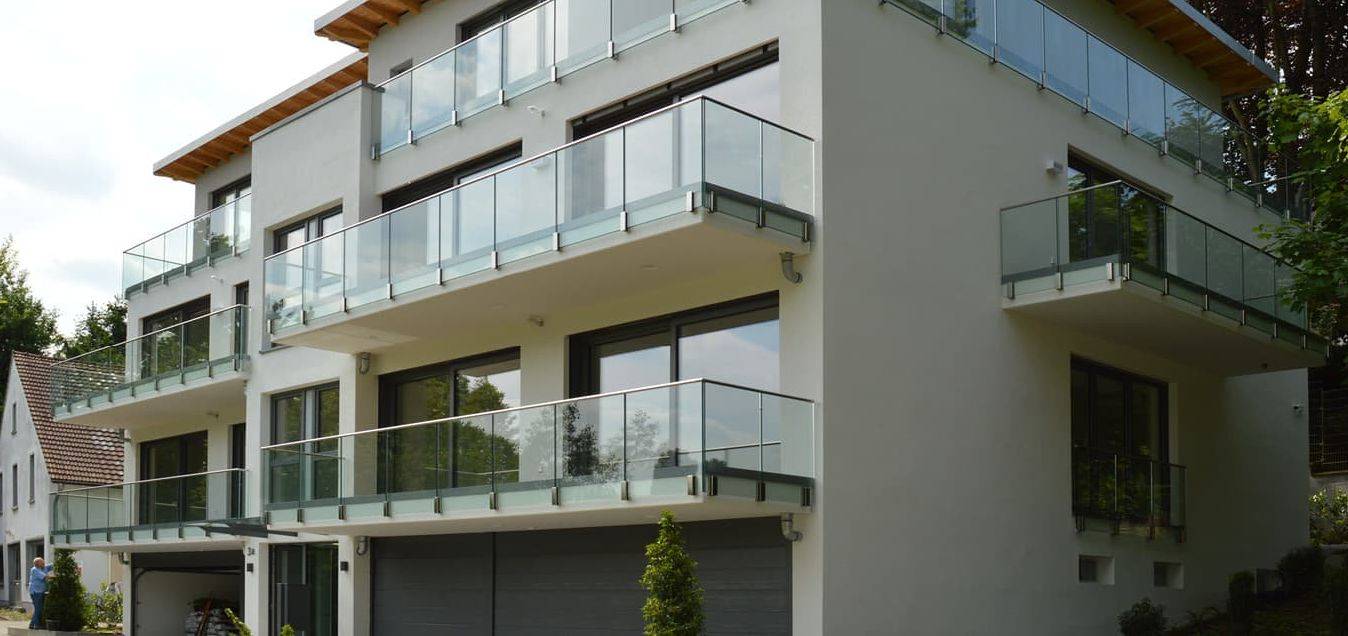

  • Eye-catching glass balustrade with a modern look that extends the glass beyond the edge of the floor.
  • Moveable glass pin allows use as either a glass clamp or a glass adapter.
  • 304 or 316 stainless steel (indoor or outdoor use).
  • Glass thickness: 12–21.25 mm.
  • Single anchor installation (optional second anchor fixing).
  • Tested to resist linear side forces up to 1 kN.
  • Finished with a stainless steel cover cap.
  • Available with a range of handrails and cap rails in a variety of materials, shapes and sizes.

General information

Color

Silver

Guidance for specification option:

Stainless steel.

Finish

Satin

Material

Stainless steel

Glass

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/560 Proprietary balustrades

L30/55 Proprietary balustrades

Specification data - Balustrade and guarding systems

Infills

Glass, 12–21.25 mm thick.

Guidance for specification option:

Insert details of glass required, including type and thickness.

Rails

-

Handrails

Guidance for specification option:

A range of handrails are available in a variety of materials, shapes and sizes; consult manufacturer's literature and insert requirements.

Specify cap rails separately; see Accessories.

Fixing to parent structure

Guidance for specification option:

Top mounted only; insert requirements.

Edge distance (vertical): 95 mm; consult manufacturer for details.

Accessories

None.

Cap rails.

Guidance for specification option:

Consult manufacturer's literature for options and insert requirements.

Adapters

MOD 0763 BLOK adapter, 304 stainless steel.

MOD 0763 BLOK adapter, 316 stainless steel.

Sustainability data

Contains Red List materials

No

Recyclability

100%

Literature

Systems Brochure

Systems Brochure

Q-railing balustrades - architects brochure

Q-railing balustrades - architects brochure
