Easy Glass® WALL Balustrade - Glass wall system

Verified by manufacturer 2 months ago

Q-railing

Glass balustrade and screen with a choice of mounting options.

Jump to:
+44 (0)1782 711676 Website

Application

For light to medium indoor and outdoor use as a ceiling-high glass partition/ balustrade.

Description

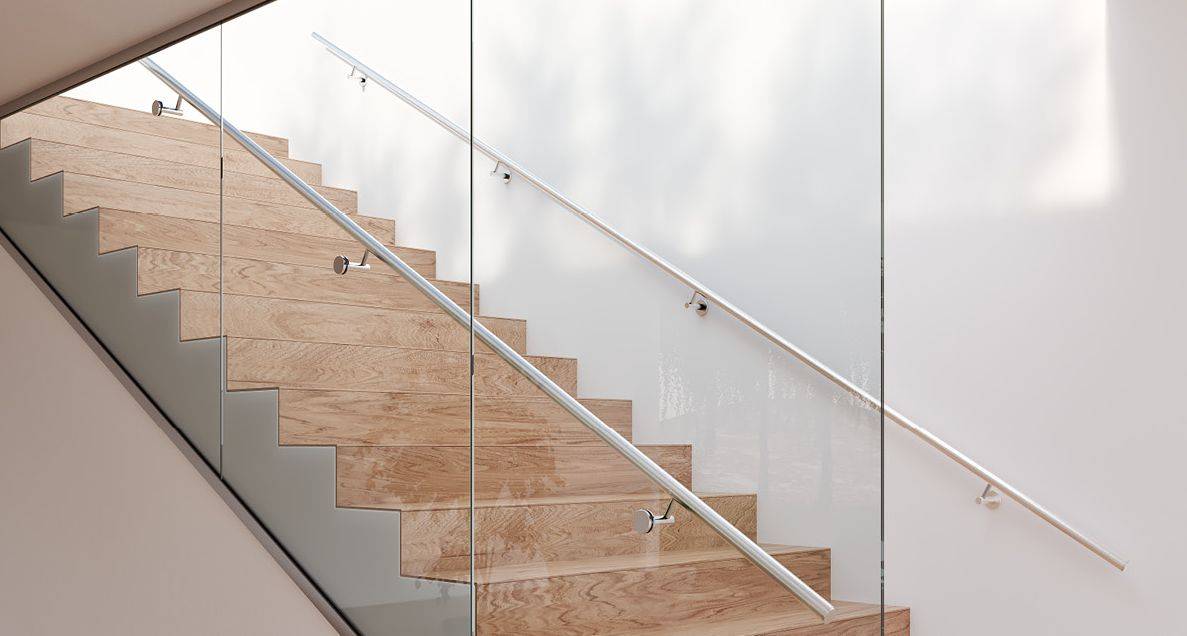

Glass balustrade and screen with a choice of mounting options. Helping to turn stairs into eye-catching features, this glass balustrade-turned screen optimizes light flow.


Features and benefits:

  • Glass thickness: 12–21.52 mm.
  • Held by elegant aluminium profiles.
  • Easy mounting; confirmed by a click. See below for mounting options.
  • For glass up to 3500 mm high and a variety of span widths.
  • Can also be used as a full-glass wall for creating secluded yet transparent office or meeting spaces; consult the manufacturer for details.


Mounting options:

  • Top-top: mounted directly underneath the ceiling and top mounted on the floor.
  • Top-fascia: mounted directly underneath the ceiling and fascia mounted on the floor.
  • Fascia-top: mounted to the fascia of the ceiling and top mounted on the floor.
  • Fascia-fascia: mounted to the fascia of the ceiling and on the fascia of the floor.

General information

Color

Silver

Guidance for specification option:

Aluminium mounting profiles.

Material

Aluminium

Guidance for specification option:

Mounting profiles.

Glass

Guidance for specification option:

Panels.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Infills

Glass.

Guidance for specification option:

Thickness: 12–21.52 mm.

Fixing to parent structure

Manufacturer's standard.

Guidance for specification option:

Dependent on mounting method required; see Mounting property below.

Mounting

Top-top.

Guidance for specification option:

Mounted directly underneath the ceiling and top mounted on the floor.

Top-fascia.

Guidance for specification option:

Mounted directly underneath the ceiling and fascia mounted on the floor.

Fascia-top.

Guidance for specification option:

Mounted to the fascia of the ceiling and top mounted on the floor.

Fascia-fascia.

Guidance for specification option:

Mounted to the fascia of the ceiling and on the fascia of the floor.

Applied finish

Matt silver effect.

Mill finish.

Sustainability data

Contains Red List materials

No

Recyclability

100%

Literature

Systems Brochure

Systems Brochure
