MOD 0745–0749 Glass Adapters Balustrade - Glass adapters

Name: MOD 0745–0749 Glass Adapters Balustrade - Glass adapters
Brand: Q-railing
SKU: mTyrLaxCBz6bYkeWd8xizm

Verified by manufacturer 3 months ago

MOD.0745 glass adapter, 60 mm diameter

Range of modular full glass railing systems with a choice of fixing options and clearances between the glass and the wall.

Jump to:

Application

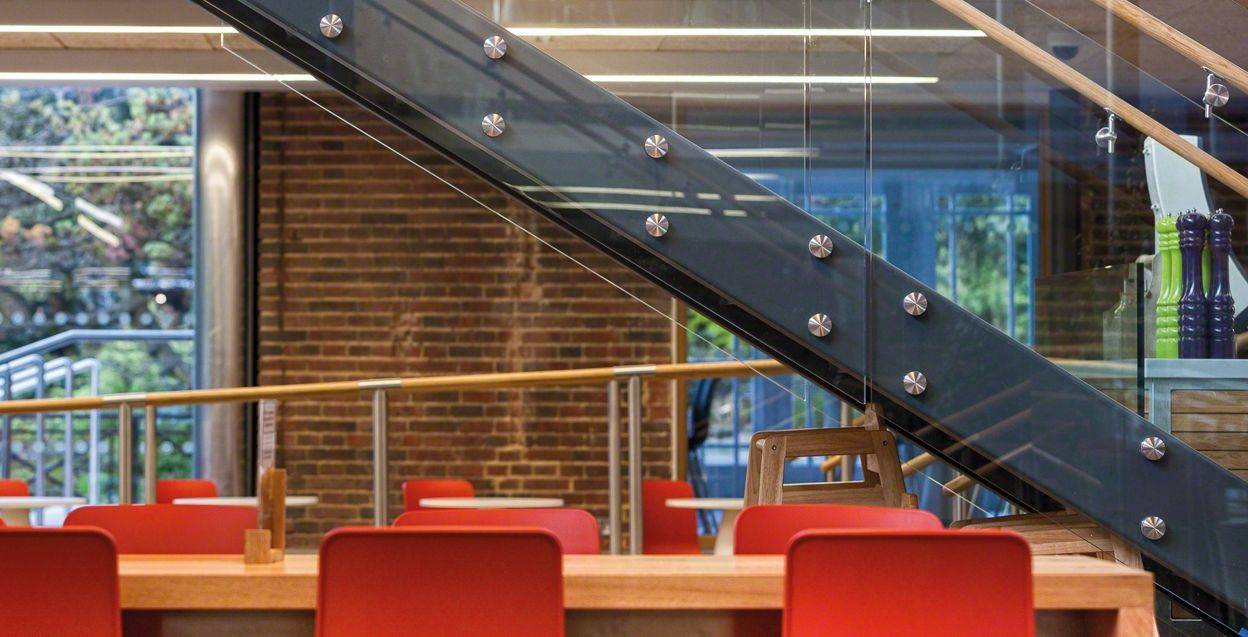

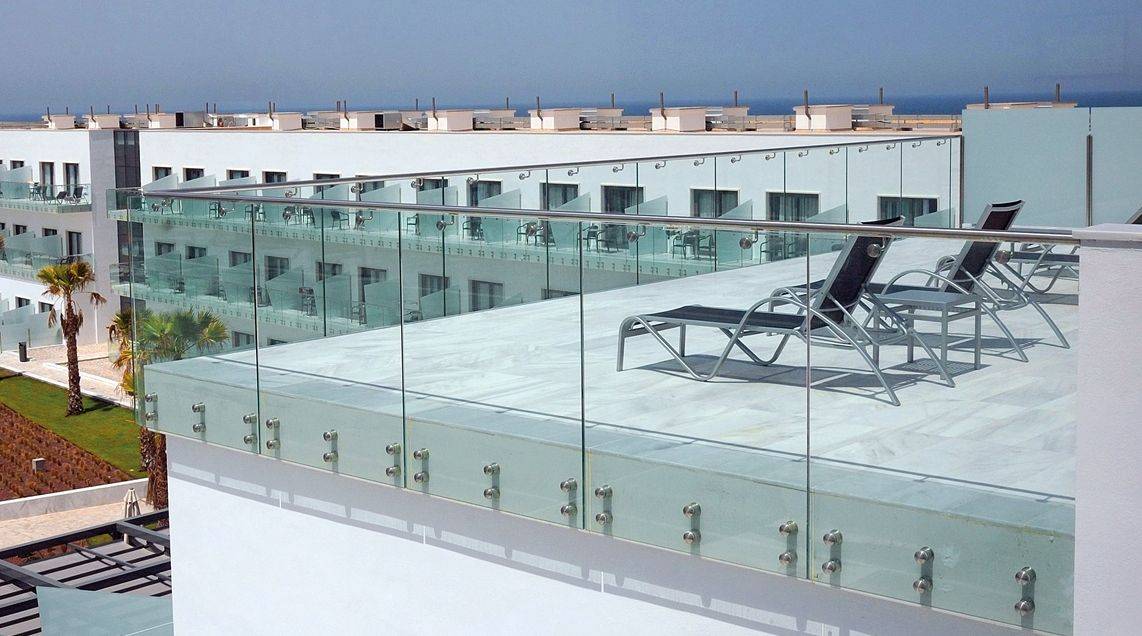

Suitable for light to medium indoor and outdoor use for stairs and balustrades. Fascia mounted.

Range of modular full glass railing systems with a choice of fixing options and clearances between the glass and the wall.

Features and benefits:

Available in 30, 50, 60 or 70 mm diameters.
The base is designed to make it easy to position glass panels prior to installation.
Easy Glass MOD 0749 allows for adjustment at any stage in the installation process.
The Easy Glass adapters work with either a mechanical anchor for concrete walls or a bolt that connects to a metal stringer.
Rounded design lends itself to a variety of different looks.
Available with a range of handrails or cap rails in a variety of materials, shapes and sizes.

Color	Silver Guidance for specification option: Stainless steel.
Finish	Satin Polished
Material	Stainless steel
Shape	Circle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_60_05_05 Balustrade and guarding systemsPrimary
CAWS	L30/55 Proprietary balustrades L30/560 Proprietary balustrades

Infills	Glass, 8.76–21.52 mm thick. Guidance for specification option: Insert requirements, including glass type and thickness.
Rails	-
Handrails	Required. Guidance for specification option: Consult manufacturer for options and insert requirements. Handrail adaptor required. Not required.
Fixing to parent structure	Guidance for specification option: Fascia-mounted only and varies with adapter specified; insert requirements. Consult manufacturer for minimum edge distances.
Samples required	Product samples Prototypes or mock-ups

Adapters	MOD.0745, 304 stainless steel, satin. Guidance for specification option: Indoor use only. MOD.0745, 316 stainless steel, polished. Guidance for specification option: Outdoor use.
Space between wall and glass	10 mm. 30 mm. 40 mm. 50 mm.
Accessories	None. Cap rails. Guidance for specification option: Consult manufacturer's literature for options and insert requirements.
