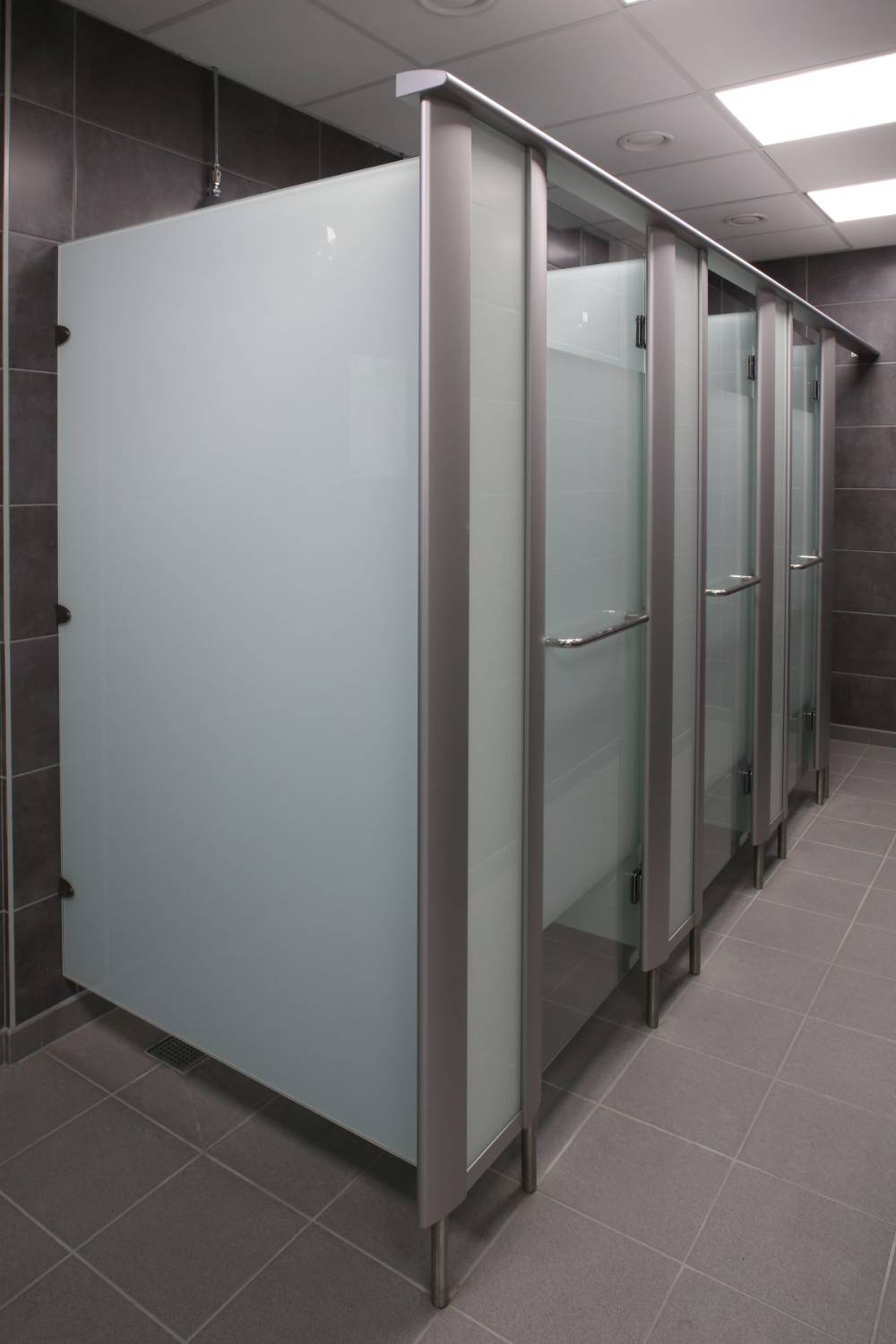

Mezzo Aqua Shower Cubicles
Verified by manufacturer 3 months ago
Shower cubicles with glass doors and partitions.
Application
Designed for use as a shower cubicle within the leisure industry.
Description
Features and benefits:
- Satin anodized aluminium aerofoil headrail.
- Split-front pilasters provide stability and aesthetics.
- Glass infill panels can be screenprinted in almost any RAL colour.
- The external towel rail to the door keeps the towel dry, but also indicates which cubicles are occupied.
General information
Color | Manufacturer guidanceGlass Collection. |
Material | Glass |
Size | Guidance for specification option: 1950 mm - overall framework: 2040 mm (optional floor to ceiling cubicles are available with minimal floor clearance for increased privacy). Manufacturer guidance
|
Width | 1100 mm 1500 mm Manufacturer guidance1100–1500 mm. |
Height | 1950 mm |
Warranty description | One year Guidance for specification option: From practical completion. |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Product range |
Specification data - Panel cubicle systems
Panels | 10 mm clear float toughened glass with 100% white screen-print to reverse, with all-glass panels to have a 5 mm radius to each corner. |
Panel supports | Satin anodized aluminium pedestal legs.Manufacturer guidanceTubular and rounded-off design, manufactured from stainless steel and fixed to partition panel. Adjustable to suit uneven floor levels. |
Pilasters | AerofoilEllipticalManufacturer guidanceSplit front pilasters. Size: 200 x 40 mm. |
Doors | 10 mm clear float toughened glass with 100% white screen-print to reverse, with all glass panels to have a 5 mm radius to each corner. |
Lippings | Manufacturer guidanceEdge treatment: All edge polished. |
Hardware | Stainless steel 4 inch butt hinges.Full length channels.Coat hook.Easily operable cast plastic indicator bolt. |
System accessories | Manufacturer guidanceCubicles are available in configurations to comply with Approved Document M (E&W), complete with outward opening doors. A standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails are also available. |
Product Reference | Mezzo Aqua Shower Cubicles |
Type | Floor-to-ceiling shower cubicle. Standard shower cubicle. |
Colour/ Finish: | Manufacturer guidance- Partitions and doors: Screen-printed 100% white to one side/ reverse as standard. Other colours available, subject to surcharge (an extended delivery period may also be required). - Pilasters: Satin anodized as standard, with other finishes available upon request. |
Sustainability data
Country of material origin | United Kingdom |
Literature
Complete washroom solutions: cubicles, lockers, vanities and ducting
