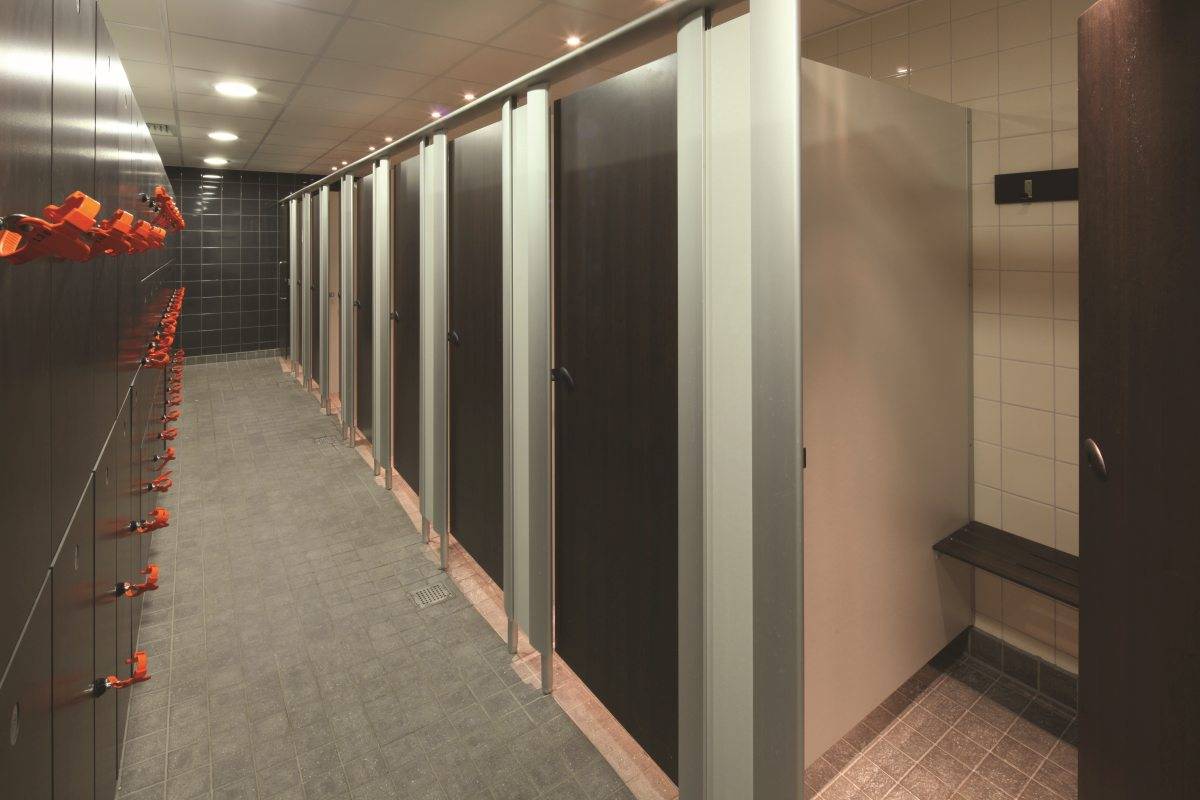

Name: Mezzo Changing Cubicles
Brand: Washroom Washroom Ltd
SKU: vRCzQZRYFaLjXEdLdfw2hW

Color

Manufacturer guidance

Arpa, Abet,Sonae, Formica depending on material.

Material

Solid grade laminate (SGL)

Guidance for specification option:

A wide range of materials available, please contact manufacturer for details.

Size

Guidance for specification option:

Overall height including 150 mm floor clearance.

Manufacturer guidance

Width range 1200-2500 mm.
Height 1950 mm.

Width

Manufacturer guidance

1500–1800 mm.

Height

1950 mm

Warranty description

One year

Guidance for specification option:

From practical completion.

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Panels

12/13 mm solid grade laminate (SGL).

Panel supports

Satin anodized aluminium pedestal legs.

Pilasters

Curved satin anodized aluminium aerofoil section.

Manufacturer guidance

Pilaster finish:

Elliptical/ aerofoil aluminium pilaster 200 x 40 mm. Satin anodized as standard, other finishes available upon request subject to surcharge.

Doors

12/ 13 mm solid grade laminate (SGL).

Lippings

Edges machined to a smooth finish.

Hardware

Stainless steel 4 inch butt hinges.

Coat hooks.

Easily operable indicator bolts with full length SAA channels.

Type

MezzoGc.

Guidance for specification option:

Glass door.

MezzoGsglC.

Guidance for specification option:

Glass door and solid grade laminate partition.

MezzoSGLc.

Guidance for specification option:

Solid grade laminate door.

Manufacturer guidance

- Glass door (MezzoGc):

Doors and partitions: 10 mm toughened and screen printed safety glass.

- Glass door and solid grade laminate partition (MezzoGsglC):

Doors: 10 mm toughened and screen printed safety glass.
Partitions: 12/ 13 mm solid grade laminate (SGL).

- Solid grade laminate door (MezzoSGLc):

Doors and partitions: 12/ 13 mm solid grade laminate (SGL).

Seating

Integral legato model 1 bench seat, 300 mm deep in solid grade laminate.

Legs

Not required.

Required.

Manufacturer guidance

Two options available:

Tubular and rounded off design manufactured from satin anodized aluminium, fixed to partition panel. Adjustable to suit uneven floor levels.
Not required as main pilaster extended to floor.

Colour

Manufacturer guidance

To be confirmed from WW standard range, subject to depth of partition.

Color	- Manufacturer guidance Arpa, Abet,Sonae, Formica depending on material.
Material	Solid grade laminate (SGL) Guidance for specification option: A wide range of materials available, please contact manufacturer for details.
Size	Guidance for specification option: Overall height including 150 mm floor clearance. Manufacturer guidance Width range 1200-2500 mm. Height 1950 mm.
Width	- Manufacturer guidance 1500–1800 mm.
Height	1950 mm
Warranty description	One year Guidance for specification option: From practical completion.

Type	MezzoGc. Guidance for specification option: Glass door. MezzoGsglC. Guidance for specification option: Glass door and solid grade laminate partition. MezzoSGLc. Guidance for specification option: Solid grade laminate door. Manufacturer guidance - Glass door (MezzoGc): Doors and partitions: 10 mm toughened and screen printed safety glass. - Glass door and solid grade laminate partition (MezzoGsglC): Doors: 10 mm toughened and screen printed safety glass. Partitions: 12/ 13 mm solid grade laminate (SGL). - Solid grade laminate door (MezzoSGLc): Doors and partitions: 12/ 13 mm solid grade laminate (SGL).
Seating	Integral legato model 1 bench seat, 300 mm deep in solid grade laminate.
Legs	Not required. Required. Manufacturer guidance Two options available: Tubular and rounded off design manufactured from satin anodized aluminium, fixed to partition panel. Adjustable to suit uneven floor levels. Not required as main pilaster extended to floor.
Colour	- Manufacturer guidance To be confirmed from WW standard range, subject to depth of partition.

Mezzo Changing Cubicles

Application

Description

General information

Color

Manufacturer guidance

Material

Size

Manufacturer guidance

Width

Manufacturer guidance

Height

Warranty description

Uniclass

CAWS

Product range

Specification data - Panel cubicle systems

Panels

12/13 mm solid grade laminate (SGL).

Panel supports

Satin anodized aluminium pedestal legs.

Pilasters

Curved satin anodized aluminium aerofoil section.

Manufacturer guidance

Doors

12/ 13 mm solid grade laminate (SGL).

Lippings

Edges machined to a smooth finish.

Hardware

Stainless steel 4 inch butt hinges.

Coat hooks.

Easily operable indicator bolts with full length SAA channels.

Type

Manufacturer guidance

Seating

Legs

Manufacturer guidance

Colour

Manufacturer guidance

Sustainability data

Country of material origin
