P37 Aluminium Security Shutter

Verified by manufacturer 17 days ago

Roché Systems Ltd

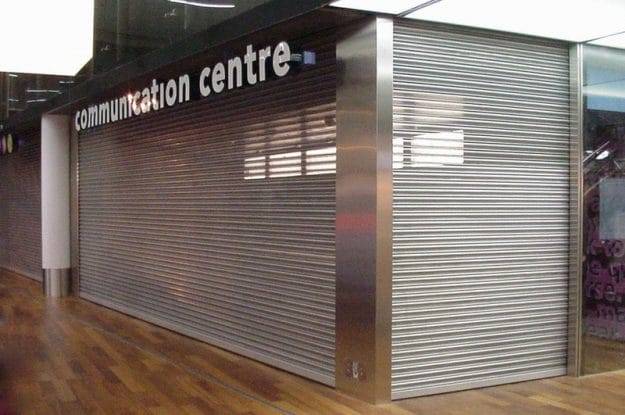

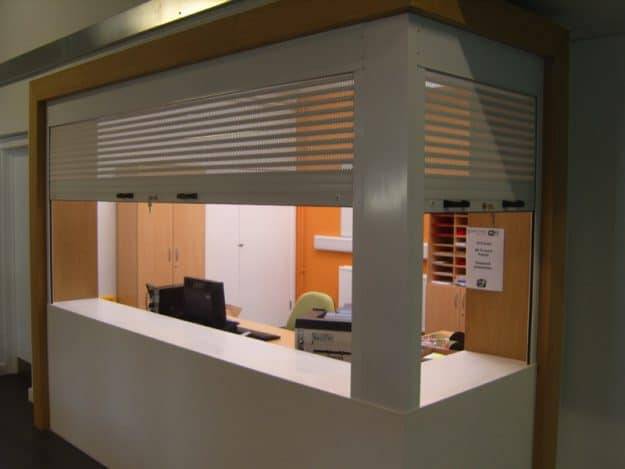

Extruded aluminium security roller shutters with perforations and 37 mm high slats.

Jump to:
BOS
03330347967 Website

Application

Windows, doors and openings in domestic and commercial uses.

Description

Double-skinned extruded aluminium security roller shutters with 37 mm high slats, available with solid, punched and perforated profiles. The shutters can span up to 4 m in width and an area up to 12 m².

General information

Color

Brown

White

Other

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Product range

Vision Roller Shutters

Specification data - Roller shutters

Opening sizes

4000 x 3000 mm.

Guidance for specification option:

Available up to 4000 x 3000 mm (w x h).

Manufacturer guidance

Up to 5000 mm height depending on width.

Arrangement

Vertical, external face fix.

Vertical, internal face fix.

Vertical, reveal fix.

Shutter curtain.

-

Lath material

9 mm thick aluminium with foam insulating core, 37 mm in height. Bottom slat: Extruded aluminium with an EPDM rubber weather seal.

Finish and colour

Brown.

Guidance for specification option:

Standard colour.

White.

Guidance for specification option:

Standard colour.

BS.

Guidance for specification option:

Insert colour requirement.

RAL.

Guidance for specification option:

Insert colour requirement.

Frame and guides

-

Material

Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: Extruded aluminium.

Colour

Brown.

Guidance for specification option:

Standard colour.

White.

Guidance for specification option:

Standard colour.

BS.

Guidance for specification option:

Insert colour requirement.

RAL.

Guidance for specification option:

Insert colour requirement.

Operation

-

Mode

Electric.

Manual, cord belt.

Guidance for specification option:

Up to a maximum weight of 20 kg.

Manual, rod and crank.

Guidance for specification option:

Up to a maximum weight of 25 kg.

Manual, spring and lock.

Guidance for specification option:

Up to a maximum weight of 30 kg.

Accessories

None.

Manual override facility.

Polycarbonate infills.

Guidance for specification option:

Available with V37 only.

Guide channel depth

25 mm.

53 mm.

60 mm

68 mm.

Sustainability data

Country of product manufacture

United Kingdom
