Resin Flooring System Acrydur™ TD

Name: Resin Flooring System Acrydur™ TD
Brand: Sherwin-Williams
SKU: i3izWzm77sqjb9NBYvZRVF

Verified by manufacturer 5 months ago

Sherwin-Williams

Methyl methacrylate (MMA) top deck car park floor system.

Jump to:

+44 (0)1204 521771 Website

Application

For use in:

Top deck car parks.
Baggage handling areas with vehicles.
External vehicle areas and walkways.
Heavy duty plant and traffic areas.

Description

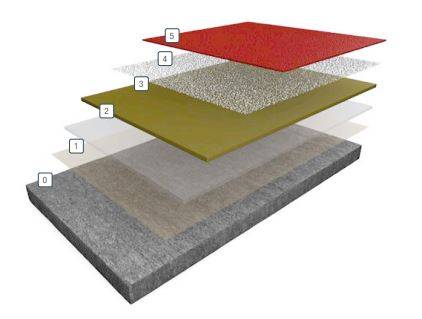

Acrydur Topfloor TD is a 6 mm thick, fast curing MMA resin flooring system for top deck car parks and similar heavy duty vehicle applications. The finish typically features a flexible membrane with crack bridging properties, and a base coat with a quartz aggregate scatter and a coloured topcoat to create a tough finish suitable for cars and other vehicles.

Acrydur Topfloor TD reduces noise from traffic movement and delivers a coloured finish for new projects or refurbishments.

Features and benefits:

Flexible crack bridging system for dynamic movement suitability.
Coloured finish.
High chemical resistance.
Reduced tyre squeal and noise.
Good slip and skid resistance.
Hard-wearing.
Non-dusting.
UV stable.
FerFa class 5–6.
Cure time of 1–2 hours (light traffic); 3–4 hours (designed traffic).

General information

Color	Red Grey Blue Beige Yellow Green Show more
Finish	Textured
Material	Methyl methacrylate Resin Quartz Aggregate
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	6 mm

Uniclass	Ss_30_42_54_75 Resin flooring systemsPrimary
CAWS	M12/110 Resin flooring M12/10 Resin flooring

Specification data - Resin flooring systems

Substrate	-
Testing	Moisture content to BS 8204.
Preparation	Preparation of existing substrates. Guidance for specification option: Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.
Primer	Acrydur PR01. Acrydur PR02. Guidance for specification option: With optional broadcast of 0.4–0.8 mm silica sand at 300 gr/m².
Resin flooring	Silica quartz scatter.
Surface treatment	Acrydur TC04. Acrydur TC05 colour.

Basecoat	Acrydur ME04 slurry. Guidance for specification option: Using 0.2–0.3 mm silica sand.
Joints	Not required. Epo-Flex™ VJ. Guidance for specification option: The spacing and type of joints should be determined prior to the resin floor system being installed. Mix Epo-Flex VJ Part A (base) with Epo-Flex VJ Part B (hardener). These units are in pre-weighed containers. Mix using a low speed mixer and paddle (300–400 rpm) for 2–3 minutes, until a uniform mixed product is obtained. Apply the Epo-Flex VJ immediately to the prepared and cut joints with a knife to a consistent smooth finish.
Membrane	Acrydur ME01. Guidance for specification option: With crack bridging fabric if required.
CompressiveStrength	To DIN 1164, 25 N/mm².
TensileStrength	To DIN 1164, 15 N/mm².
Bond strength	>1.5 MPa.
Water permeability	Impermeable.
Slip resistance	To BS 7976-2:2002 + A1:2013, >36 wet/ dry.
Application temperature	5–30ºC.
System thickness	6 mm.
