Resin Flooring System Elladur™ Deco Quartz SF

Verified by manufacturer 2 months ago

Sherwin-Williams Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

A 1 mm multi-component polyaspartic/ polyurea fast cure floor system.

Jump to:
+44 (0)1204 521771 Website

Application

A heavy duty, high build UV stable floor coating system suitable for:

  • Medical, commercial and light industrial.
  • Decorative floor areas.
  • Domestic areas.
  • Retail spaces

Description

A multi-component polyaspartic/ polyurea fast cure floor system which utilises coloured quartz aggregate applied to a 0.3 mm base coat to provide a heavy duty decorative flooring finish. Approved as IMO high performance flooring.

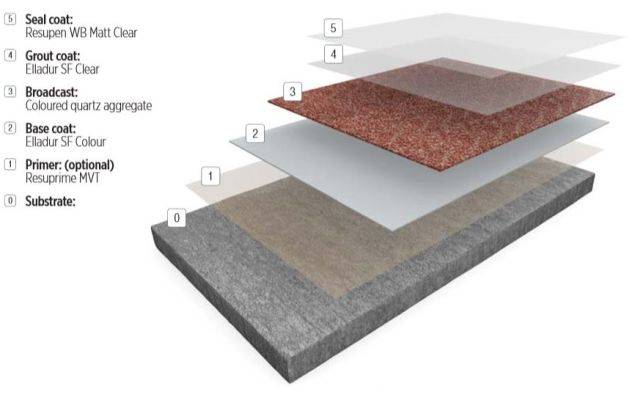

System includes:

  • Substrate.
  • Primer: Resuprime MVT.
  • Base coat: Elladur SF Colour.
  • Broadcoat: Coloured quartz aggregate.
  • Grout coat: Elladur SF Clear.
  • Seal coat: Resupen WB Matt Clear.


Features and benefits:

  • Produces decorative and functional surface.
  • Textured non-slip finish.
  • Fast curing even at low temperatures.
  • High build.
  • Ultraviolet (UV) stable.
  • Very low odour.
  • Tough but flexible.
  • Can be applied onto a wide range of substrates.

General information

Color

Other

Guidance for specification option:

Consult manufacturer for options.

Beige

Blue

Green

Grey

Show more

Finish

Matt

Anti-slip

Textured

Multi-coloured

Material

Polyaspartic

Guidance for specification option:

Polyaspartic resin.

Resin

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechancial damage, pitting and cracks.

Primer

Not required.

Resuprime MVT.

Guidance for specification option:

(Optional) For use if the concrete substrate moisture levels are above 75% equilibrium relative humidity (ERH) or no damp proof membrane is present.

Resin coating primers.

Resin flooring

Elladur SF colour.

Guidance for specification option:

Base coat.

Coloured quartz aggregate.

Guidance for specification option:

Broadcast.

Elladur SF clear.

Guidance for specification option:

Grout coat.

Resupen WB matt clear.

Guidance for specification option:

Seal coat.

Resin floor coatings.

High-build floor coatings.

Multilayer flooring.

Execution

Workmanship.

Application of primers.

Surface abrading and polishing.

Applying surface sealers.

Applying surface finishes.

Retention of resin edges.

System thickness

1.2 mm.

Hardness

To BS ISO 7619-1, 83.

Guidance for specification option:

After 24 hour.

Manufacturer guidance

Shore D.

Abrasion resistance

To ASTM D4060-14, 54.8 mg.

Guidance for specification option:

Loss per 1000 cycles.

CompressiveStrength

To BS EN ISO 604:2003, 17.2 MPa.

Bond strength

To EN 13892-8, >3 N/mm².

Guidance for specification option:

Substrate failure.

Temperature resistance

Up to 70⁰C.

Reaction to fire (to EN 13501-1)

Bfl–s1.

Chemical resistance

Good.

VOC content

12—85 g/L.

Guidance for specification option:

Varies depending on product.

Coverage

Up to 40 m².

Guidance for specification option:

Varies depending on product.

Cure time

8 hours to 8 days.

Guidance for specification option:

Depends on traffic conditions and temperature.

Application temperature

10—25°C.

Guidance for specification option:

An equilibrium relative humidity (ERH) <90%.

UV stabilization

Yes.

Performance

-

Manufacturer guidance

  • Slip resistance.
  • Durability.
  • Water and vapour resistance.

Testing

-

Manufacturer guidance

  • Testing slip resistance.
  • Testing bond strength.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001
