Resin Flooring System Elladur Topcoat

Verified by manufacturer 3 months ago

Sherwin-Williams Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

A high build, polyaspartic/ polyurea fast-cure floor coating system based on advanced materials, designed to provide a tough and durable gloss finish.

Jump to:
+44 (0)1204 521771 Website

Application

High build UV stable system floor coating system suitable for use in:

  • All industrial areas, onshore/ offshore industrial marine areas.
  • Domestic areas.
  • Retail spaces.
  • Commercial and industrial applications.

Description

A high build, polyaspartic/ polyurea fast-cure floor system with a non-slip texture based on advanced materials, designed to provide a tough and durable gloss finish at around 500 microns thickness. Light stable with good chemical resistance and very low volatile organic content (VOC) content. The system can be applied to a variety of finishes and surfaces in a single day.

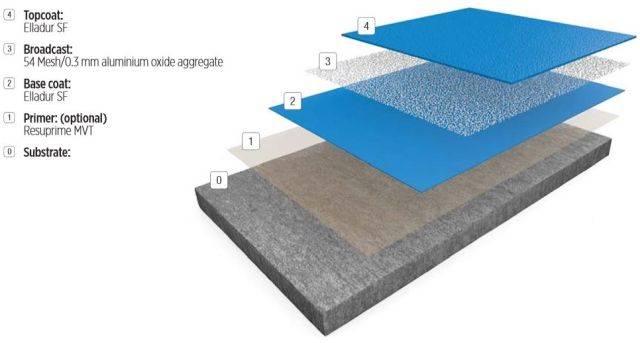

System includes:

  • Substrate.
  • Primer (optional): Resuprime MVT.
  • Basecoat: Elladur™ SF.
  • Broadcoat: 54 Mesh/0.3 mm aluminium oxide aggregate.
  • Topcoat: Elladur™ SF.


Features and benefits:

  • Fast curing at low temperature.
  • Light non-slip texture.
  • High build.
  • Ultraviolet (UV) stable.
  • Very low odour.
  • Tough but flexible.
  • Can be applied onto a wide range of substrates.
  • Low VOC.

General information

Color

Black

Blue

Green

Red

Finish

Gloss

Material

Polyaspartic

Guidance for specification option:

Polyaspartic resin.

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechancial damage, pitting and cracks.

Primer

Not required.

Resuprime MVT.

Guidance for specification option:

Optional: for use if the concrete substrate moisture levels are above 75% equilibrium relative humidity (ERH) or no damp proof membrane is present.

Resin coating primers.

Resin flooring

Elladur™ SF.

Guidance for specification option:

Base coat.

0.3 mm aluminium oxide aggregate.

Guidance for specification option:

Broadcast.

Elladur™SF.

Guidance for specification option:

Top coat.

Resin floor coatings.

Floor seals.

High-build floor coatings.

Execution

Workmanship.

Applying surface finishes.

System thickness

0.45 mm.

Abrasion resistance

To ASTM D4060-14, 144 mg.

Guidance for specification option:

Loss/ 1000 cycles.

CompressiveStrength

To BS EN ISO 604, 16.2 MPa.

Tensile strength (to EN ISO 527)

To BS EN ISO 527-2, 21.1 MPa.

Flexural strength

To BS EN ISO 178+A1, 3.3 N/mm².

Bond strength

To BS EN 13892-8, 3 N/mm².

Guidance for specification option:

Substrate failure.

Impact resistance

To BS EN ISO 6272-1:2011, >4.

Temperature resistance

70°C.

Manufacturer guidance

Tolerant of temperatures up to:

Reaction to fire (to EN 13501-1)

Bfl–s1.

Chemical resistance

Good.

VOC content

<30 g/L.

Guidance for specification option:

Varies depending on product.

Coverage

Up to 250 m².

Guidance for specification option:

Varies depending on the product.

Cure time

2 hours to 8 days.

Guidance for specification option:

Depends on traffic conditions and temperature.

Application temperature

Guidance for specification option:

10—25°C. An equilibrium relative humidity (ERH) <90%.

UV stabilization

Yes.

Performance

-

Manufacturer guidance

  • Slip resistance.
  • Durability.
  • Water and vapour resistance.
  • Compliance with performance requirements.

Testing

-

Manufacturer guidance

  • Testing slip resistance.
  • Testing bond strength.
  • Verification of performance.
