Resin Flooring System Resudeck™ EP

Verified by manufacturer 2 months ago

Sherwin-Williams Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

A multi-component epoxy flooring system for underground and basement car park decks where thermal cycling conditions do not require crack bridging properties.

Jump to:
+44 (0)1204 521771 Website

Application

Epoxy flooring system suitable for underground, basement or covered parking and driving facilities where a high build vehicle deck system is required.

Description

A multi-component epoxy flooring system for underground and basement car park decks where thermal cycling conditions do not require crack bridging properties. As a solvent free very low odour system Resudeck™ EP coated surfaces reduce the risk of skidding with traction and provide cosmetically enhanced spaces with light reflection. Areas can be colour blocked to have good visibility for all forms of traffic.

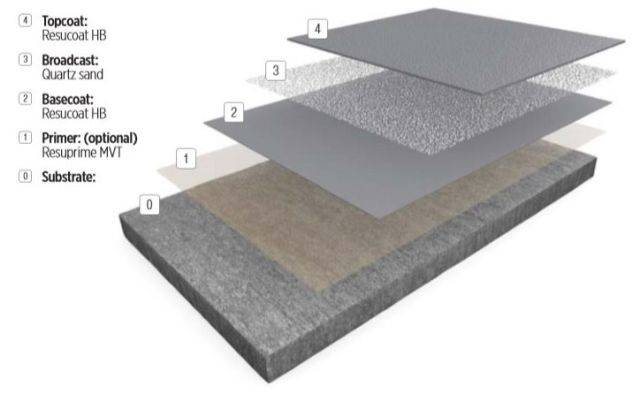

System includes:

  • Substrate.
  • Primer: Resuprime MVT.
  • Base coat: Resucoat HB.
  • Broadcoat: Quartz sand.
  • Top coat: Resucoat HB.


Features and benefits:

  • High build finish.
  • Helps to reduce vehicle tyre 'squeal'.
  • Enhances slip and skid resistance.
  • Full epoxy system.
  • Resilience to chemical attack.
  • Low volatile organic content (VOC).

General information

Color

Other

Guidance for specification option:

Eight RAL colours available.

Black

Blue

Green

Red

Show more

Finish

Anti-skid

Anti-slip

Material

Epoxy resin

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.

Preparation of new substrates.

Primer

Not required.

Resuprime MVT.

Guidance for specification option:

Optional.

Resin coating primers.

Resin flooring

Resucoat HB.

Guidance for specification option:

Base coat.

Quartz sand 0.4—0.8 mm.

Guidance for specification option:

Broadcast.

Resucoat HB.

Guidance for specification option:

Top coat.

Resin floor coatings.

High-build floor coatings.

Multilayer flooring.

Execution

Workmanship.

Application of primers.

Surface abrading and polishing.

Applying surface sealers.

Applying surface finishes.

Retention of resin edges.

Installing strip movement joints.

System thickness

-

Manufacturer guidance

0.6—1 mm.

CompressiveStrength

To BS EN ISO 604, 9.6 MPa.

TensileStrength

To BS EN ISO 527-2, 7.5 MPa.

Flexural strength

To BS EN ISO 178, 3.2 N/mm².

Bond strength

To EN 13892-8, >3 N/mm².

Guidance for specification option:

Substrate failure.

Temperature resistance

70⁰C.

Reaction to fire (to EN 13501-1)

Bfl–s1.

Chemical resistance

Good.

UV stabilization

No.

VOC content

Guidance for specification option:

12—186 g/L. Varies depending on product.

Coverage

Up to 50 m².

Guidance for specification option:

Varies depending on product.

Cure time

8 hours to 8 days.

Guidance for specification option:

Depends on traffic conditions and temperature

Application temperature

Guidance for specification option:

10—25°C. An equilibrium relative humidity (ERH) <90%.

Performance

-

Manufacturer guidance

  • Slip resistance.
  • Durability.
  • Water and vapour resistance.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

Resin flooring Resudeck EP car park system

Resin flooring Resudeck EP car park system

A guide to Sherwin-Williams Industrial Resin Flooring

A guide to Sherwin-Williams Industrial Resin Flooring
