Resin Flooring System Resuflor Deco Quartz TG

Verified by manufacturer 2 months ago

Sherwin-Williams

Resuflor Deco Quartz TG is a decorative epoxy floor screed system incorporating multi-coloured aggregates, designed to produce a hard wearing, attractive surface.

Jump to:
+44 (0)1204 521771 Website

Application

Decorative epoxy quartz floor screed system suitable for:

  • Pharmaceutical areas.
  • Commercial kitchens.
  • Animal compounds and veterinary areas.
  • Toilets and washrooms.
  • Reception areas.
  • Healthcare industry.
  • Production areas.
  • Laboratories.
  • Industrial workshops.
  • Prisons and police cells.

Description

A decorative epoxy floor screed system, incorporating multi-coloured aggregates and designed to produce a hard wearing, attractive surface. It is applied at a minimum thickness of 4 mm and then sealed with clear resins to provide a matt or gloss finish, creating an impervious sealed surface.


Features and benefits:

  • Creates decorative and functional surfaces.
  • Can be used for coving.
  • Seamless floor to coving finish.
  • Hard wearing and durable.
  • Ease of application.
  • Low odour.
  • Good slip resistance properties.
  • Excellent abrasion and impact resistance.
  • Good chemical resistance.

General information

Color

Other

Guidance for specification option:

Consult manufacturer.

Black

Grey

Green

Red

Show more

Finish

Matt

Gloss

Smooth

Material

Epoxy

Guidance for specification option:

Epoxy resin.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Eight year

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.

Preparation of new substrates.

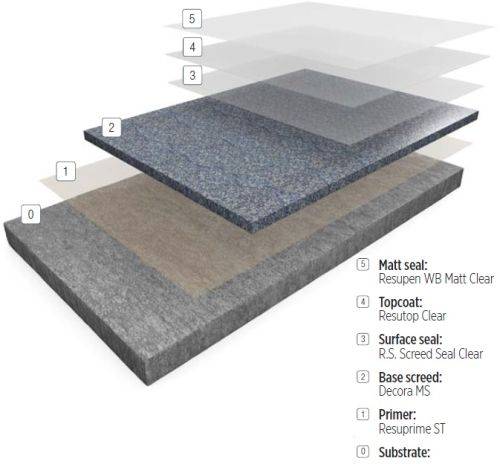

Primer

Resuprime ST.

Resin coating primers.

Resin flooring

Decora MS.

Guidance for specification option:

Screed.

R.S. screed seal clear.

Guidance for specification option:

Seal coat.

Resutop clear.

Guidance for specification option:

Top coat.

Resupen WB matt clear.

Guidance for specification option:

Matt seal (optional).

Heavy-duty screed flooring.

Multilayer flooring.

Screed flooring.

Movement joints

-

Type

Resin flooring strip movement joints.

Resin skirtings and upstands

Seamless coved skirtings.

Guidance for specification option:

Decora MS applied onto a semi-cured tack coat using R.S. Tack Primer or Resuprime MVT.

Render-grade resins

Execution

Workmanship.

Application of primers.

Surface abrading and polishing.

Applying surface sealers.

Applying surface finishes.

Forming upstands.

Retention of resin edges.

Installing strip movement joints.

System thickness

4.5 mm.

Reaction to fire (to EN 13501-1)

Bfl-s1.

Curing time

12—16 hours.

Guidance for specification option:

(at 20ºC) Light traffic.

48—72 hours.

Guidance for specification option:

(at 20ºC) Designed traffic.

≤7 days.

Guidance for specification option:

(at 20ºC) Full cure traffic.

Hardness

To BS ISO 7619-1, 84.

Guidance for specification option:

After 24 hours.

Manufacturer guidance

Shore D

Abrasion resistance

To BS EN 13892-4, AR 0.5.

CompressiveStrength

56 N/mm².

TensileStrength

To BS EN 13892-2, 5 N/mm²

Guidance for specification option:

to BS 6319-7

Flexural strength

To BS EN 13892-2, 0.8 N/mm².

Bond strength

To BS EN 13892-8, >3 N/mm².

Temperature resistance

60°C.

Manufacturer guidance

Tolerant of temperatures up to:

Chemical resistance

Good.

UV stabilization

Good

Performance

-

Manufacturer guidance

  • Slip resistance.
  • Durability.
  • Flatness and surface regularity.
  • Water and vapour resistance.

Testing

-

Manufacturer guidance

  • Testing slip resistance.
  • Testing bond strength.
  • Verification of performance.

Sustainability data

Country of product manufacture

United Kingdom
