Resin Flooring System Resuflor Topcoat Profile

Verified by manufacturer 2 months ago

Sherwin-Williams Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

High build epoxy flooring coating system with a light, non-slip texture.

Jump to:
+44 (0)1204 521771 Website

Application

Epoxy flooring coating system suitable for use in:

  • Food processing and beverage areas.
  • Chemical plant rooms.
  • Engineering workshops.
  • Automotive and aviation areas.
  • Factory units.
  • Warehouses.
  • Suitable for all demarcation and walkways.

Description

A high build epoxy resin system with a light non-slip texture achieved by adding an aggregate to the mix which stays suspended whilst the product is installed for a consistent finish. Applied by roller and paint brush, the system is low odour and provides a textured gloss coloured finish at approximately 500 micrometers thickness, which is suitable for all areas of industry where a hard-wearing non-slip and chemically resistant floor coating is required.


Features and benefits:

  • High build finish.
  • Non-slip performance.
  • Solvent-free.
  • Hygienic and easily cleaned.
  • Good colour stability.
  • Excellent slip resistance with the inclusion of selected aggregates.
  • High gloss finish.
  • Available in a wide range of colours.

General information

Color

Black

Blue

Green

Grey

Red

Show more

Finish

Gloss

Guidance for specification option:

High gloss.

Material

Epoxy resin

Resin

Epoxy

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.

Primer

Not required.

Resuseal WB clear.

Guidance for specification option:

Optional.

Resin coating primers.

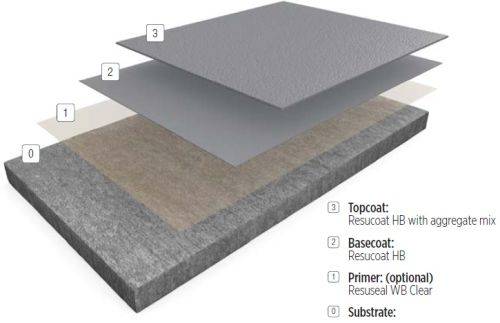

Resin flooring

Resucoat HB .

Guidance for specification option:

Base coat.

Resucoat HB with aggregate mix.

Guidance for specification option:

Top coat.

Resin floor coatings.

Floor seals.

High-build floor coatings.

Execution

Workmanship.

Application of primers.

Surface abrading and polishing.

Applying surface sealers.

Applying surface finishes.

System thickness

0.5 mm.

Reaction to fire (to EN 13501-1)

Bfl-s1.

Curing time

12—16 hours.

Guidance for specification option:

(at 20ºC) Light traffic.

48—72 hours.

Guidance for specification option:

(at 20ºC) Designed traffic.

≤7 days.

Guidance for specification option:

(at 20ºC) Full cure traffic.

Abrasion resistance

To ASTM D4060-14, 134.7 mg.

Guidance for specification option:

Loss/ 1000 cycles.

CompressiveStrength

To BS EN ISO 604, 9.6 MPa.

TensileStrength

To BS EN ISO 527-2, 7.5 MPa.

Flexural strength

To BS EN 13892-8, 3.2 N/mm².

Bond strength

To BS EN 13892, >3 N/mm².

Guidance for specification option:

Substrate failure.

Temperature resistance

45°C.

Manufacturer guidance

Tolerant of temperatures up to:

Chemical resistance

Good.

UV stabilization

No.

Slip resistance

To BS 7976-2, >36.

Colour

Red.

Light Grey.

Dark Grey.

Blue.

Green.

Show more

Finish:

High gloss.

Performance

-

Manufacturer guidance

  • Slip resistance.
  • Durability.
  • Water and vapour resistance.
  • Compliance with performance requirements.
  • Compliance with performance requirements.

Testing

-

Manufacturer guidance

  • Testing slip resistance.
  • Testing bond strength.
  • Verification of performance.
