Resin Flooring System Resuflor Topfloor FX

Verified by manufacturer 3 months ago

Sherwin-Williams Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

A self-levelling polyurethane modified epoxy resin floor system which provides a flat hard wearing gloss finish 2—3 mm in thickness with a degree of flexibility.

Jump to:
+44 (0)1204 521771 Website

Application

Flexible self-levelling resin floor system suitable for:

  • Laboratories.
  • Studios.
  • Workshops.
  • Printing and packaging areas.
  • Food manufacture and processing.
  • Brewing and beverage.
  • Cultivation facilities.
  • Automotive production.
  • Pharmaceutical and chemical plant processing

Description

A self-levelling polyurethane modified epoxy resin floor system which provides a flat, hard-wearing, 2—3 mm thick gloss finish with a degree of flexibility following the profile of the existing floor. The system provides aesthetically pleasing results with resistance against chemical attack and abrasion. It is suitable for production areas and clean room type situations where a smooth and tough hygienic floor with some flexibility is required.


Features and benefits:

  • Seamless.
  • Flexible.
  • Gloss finish.
  • Silica free.
  • Extremely hard wearing.
  • Good chemical resistance.
  • Smooth finish for precise operation equipment.

General information

Color

Other

Guidance for specification option:

12 colour available consult manufacturer for options.

Finish

Gloss

Smooth

Material

Epoxy

Guidance for specification option:

Polyurethane modified epoxy resin.

Warranty description

Five year

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechancial damage, pitting and cracks.

Preparation of new substrates.

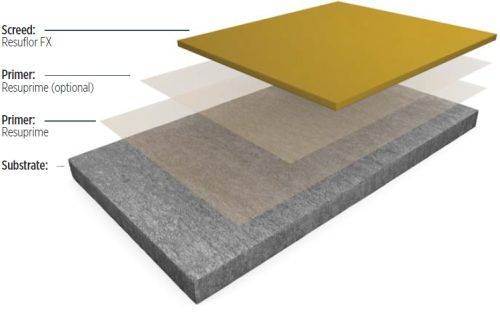

Primer

Resuprime MVT.

Guidance for specification option:

Standard, for use if the concrete substrate moisture levels are above 75% equilibrium relative humidity (ERH) or no damp proof membrane is present.


Optional two coats: for use if the concrete substrate moisture levels are particularly high.

Resin coating primers.

Resin flooring

Resuflor FX.

Flow applied flooring.

Heavy-duty flow-applied flooring.

Movement joints

-

Type

Continue functioning joints.

Guidance for specification option:

In the subfloor through the resin flooring system and filled with Epo-Flex VJ.

Resin flooring strip movement joints.

Resin skirtings and upstands

Resuflor 45.

Guidance for specification option:

Coved skirtings.

Render-grade resins.

Execution

Workmanship.

Application of primers.

Surface abrading and polishing.

Applying surface finishes.

Retention of resin edges.

Installing strip movement joints.

System thickness

3 mm.

Guidance for specification option:

Maximum.

Curing time

12—16 hours.

Guidance for specification option:

(at 20ºC) Light traffic.

48—72 hours.

Guidance for specification option:

(at 20ºC) Designed traffic.

≤7 days.

Guidance for specification option:

(at 20ºC) Full cure traffic.

Hardness

To BS ISO 7619-1, 57.

Guidance for specification option:

After 24 hours.

Manufacturer guidance

Shore D.

Abrasion resistance

To BS EN 13892-4, AR 0.5.

Compression strength

To BS EN ISO 604, 27.6 MPa.

TensileStrength

To BS EN ISO 527-2, 4.8 MPa.

Bond strength

To BS EN 13892-8, >3 N/mm.

Guidance for specification option:

Substrate Failure.

Temperature resistance

60°C.

Manufacturer guidance

Tolerant of temperatures up to:

Chemical resistance

Good.

UV stabilization

No.

Colour

Other.

Guidance for specification option:

12 colours available consult manufacturer for options.

Performance

-

Manufacturer guidance

  • Slip resistance.
  • Durability.
  • Water and vapour resistance.
  • Flatness and surface regularity.

Sustainability data

Country of product manufacture

United Kingdom
