Resin Flooring System Resuflor Topseal

Verified by manufacturer 3 months ago

Sherwin-Williams Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

A water based epoxy resin floor system for application as an industrial floor coating at a thickness of around 100 microns.

Jump to:
+44 (0)1204 521771 Website

Application

Suitable for producing a tough seamless, hygienic floor finish. AquArmor™ S can act as a curing membrane to increase hardness of concrete by allowing full hydration of cement and can be applied to new concrete, seven days after being poured.


Can be used in the following scenarios:

  • As a seal for concrete.
  • Suitable for low to medium traffic indoor applications.
  • Suitable for all types of masonry, asphalt and wood substrates.
  • Automotive and aviation areas.
  • Factory units.
  • Warehouses.

Description

Resuflor Topseal is a water based epoxy resin floor system for application as an industrial floor coating at a thickness of around 100 micrometres. A sheen finish will be provided which can be clear or coloured and is suitable for all areas of industry where a hard wearing floor coating is required.

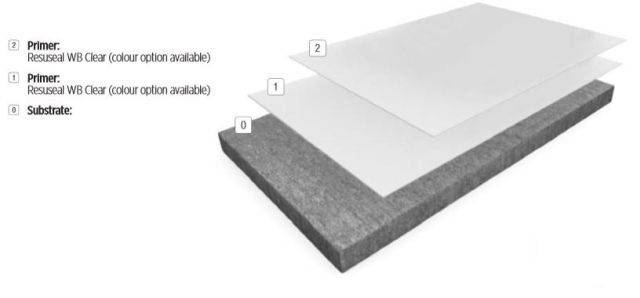

System includes:

  • Substrate.
  • Primer: Resuflor WB Clear (colour option also available).


Features and benefits:

  • Solvent-free.
  • Silica free.
  • Excellent adhesion.
  • Hard wearing.
  • Hygienic and easily cleaned.
  • Low odour.


General information

Color

Clear

Grey

Guidance for specification option:

Stirling grey or flint grey.

Red

Guidance for specification option:

Salsa red.

Finish

Anti-slip

Satin

Smooth

Material

Epoxy resin

Resin

Water-based

Water-borne

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.

Preparation of new substrates.

Primer

Not required.

Optional.

Resin coating primers.

Movement joints

-

Type

Resin flooring strip movement joints.

Execution

Workmanship.

Application of primers.

Applying surface sealers.

Applying surface finishes.

System thickness

0.1 mm.

Hardness

To BS EN ISO 1522: 83.

Manufacturer guidance

Pendulum hardness.

Abrasion resistance

To ASTM D4060-14, 101.5 mg.

Guidance for specification option:

Loss/1000 cycles.

Tensile strength (to EN ISO 527)

To BS EN ISO 527-2, 26 MPa.

Bond strength

To EN 13892-8, >3 N/mm².

Guidance for specification option:

Substrate failure.

Temperature resistance

Up to 45⁰C.

Chemical resistance

Good.

VOC content

10 g/L.

Coverage

60 m².

Cure time

8 hours to 8 days.

Guidance for specification option:

Depends on traffic conditions and temperature.

Application temperature

10—25°C.

Guidance for specification option:

An equilibrium relative humidity (ERH) <90%.

UV stabilization

No.

Colour

Clear.

Stirling grey.

Flint grey.

Salsa red.

Performance

-

Manufacturer guidance

  • Durability.
  • Water and vapour resistance.

Testing

-

Manufacturer guidance

  • Testing slip resistance.
  • Testing bond strength.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001
