Resin Flooring System SofTop™ Comfort SL
Verified by manufacturer 3 months ago
ISO 9001 Quality Management
Certificate type
A flexible self-levelling polyurethane resin comfort floor system which provides a hard wearing finish typically at 5 mm thickness.
Application
A flexible self-smoothing polyurethane resin floor system suitable for:
- Hospitals.
- Schools.
- Offices.
- Atriums.
- Sports areas.
- Studios.
- Pharmaceutical areas.
Description
A flexible self-levelling polyurethane resin comfort floor system which provides a hard wearing finish typically at 5 mm thickness. An environmentally friendly product, free of solvent and using natural plant oils in its formulation.

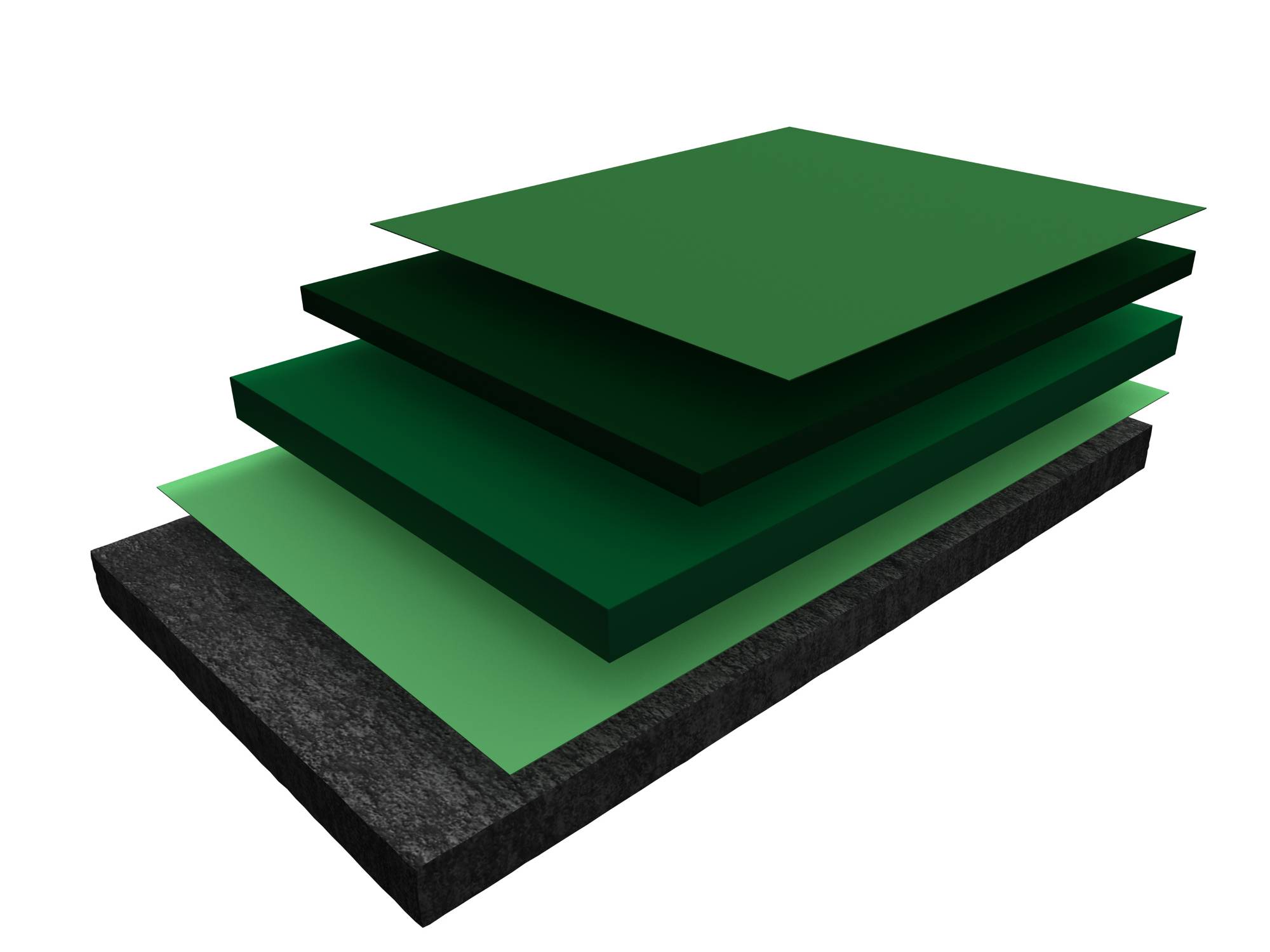

System includes:
- Substrate.
- Primer: SofTop LVP.
- Membrane: SofTop SD.
- Screed: SofTop SLR Flex.
- Seal: SofTop MC or CMC.
Features and benefits:
- A flexible product which helps to reduce vibration.
- Sound absorbing up to 20 dB.
- Seamless.
- Matt finish.
- Extremely hard wearing.
- Hygienic.
- Good chemical resistance.
- Smooth finish for precise operation equipment.
General information
Color | Other Guidance for specification option: Eight RAL colours available consult manufacturer. Black Green Grey Red |
Finish | Smooth Matt |
Material | Polyurethane Guidance for specification option: Polyurethane resin. |
Warranty description | Five year |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |
Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content to BS 8204. |
Preparation | Preparation of existing substrates.Guidance for specification option: Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks. |
Primer | SofTop LVP.Resin coating primers. |
Resin flooring | SofTop SD.Guidance for specification option: Membrane. SofTop SLR Flex or SLR Flex UV.Guidance for specification option: Screed. SofTop MC or CMC.Guidance for specification option: Seal. Resin floor coatings.Flow applied flooring.Heavy-duty flow-applied flooring.Multilayer flooring. |
Movement joints | |
Type | Continue functioning joints.Guidance for specification option: In the subfloor through the resin flooring system and fill with Epo-Flex VJ. |
Execution | Workmanship.Application of primers.Surface abrading and polishing.Applying surface sealers.Applying surface finishes.Retention of resin edges.Installing strip movement joints. |
System thickness | 5-7mm. |
Hardness | To DIN 53501, 80 mm. Guidance for specification option: After 24 hours. Manufacturer guidanceShore D. |
Crack bridging | 2 mm. |
Elongation at break | To DIN 53504, >300%. |
Abrasion resistance | To EN 1504-2, <50 mg. |
Bond strength | To EN 13892-8 , >1.5 MPa. Guidance for specification option: Substrate failure. |
Reaction to fire (to EN 13501-1) | Bfl–s1. |
Impact resistance | To EN 1504-2, Class II. |
Chemical resistance | Good. |
UV stabilization | No. |
Slip resistance | <36. Guidance for specification option: to ASTM E 303 (low slip potential in wet/ dry conditions) |
VOC content | >5—42 g/L. Guidance for specification option: Varies depending on product. |
Coverage | Up to 40 m². Guidance for specification option: Varies depending on product. |
Cure time | 18 hours to 8 days. Guidance for specification option: Depends on traffic conditions and temperature. |
Application temperature | 10—25°C. Guidance for specification option: An equilibrium relative humidity (ERH) <90%. |
Performance | Manufacturer guidance
|
Testing | Manufacturer guidance
|
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
