Schlüter®-DILEX-BWB - Movement Joint Profile

Verified by manufacturer 4 months ago

Schlüter-Systems Ltd

A 10 mm wide pre-fabricated PVC movement profile.

Jump to:
+44 (0)1530 813396 Website

Application

For tiled coverings.

Suitable for both residential use and medium-duty commercial applications.

Description

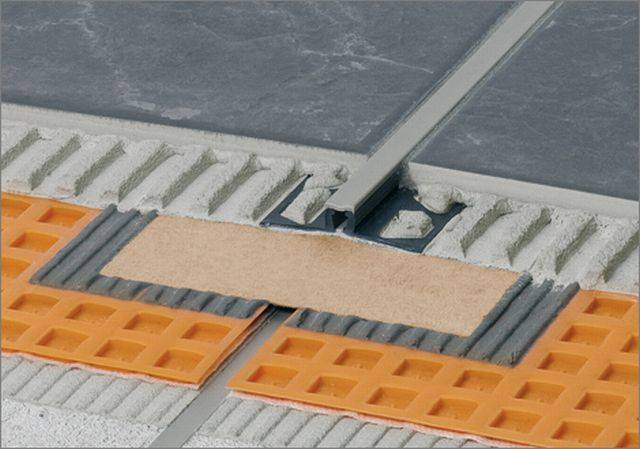

A prefabricated surface joint profile with rigid PVC anchoring legs that protect tile edges. It features a 10 mm wide, soft CPE movement zone that separates individual fields in the tile covering and forms the visible surface. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Designed to allow movement and reduce stress in large, tiled areas.
  • Eliminates the need for caulking.
  • Prevents cracking and delamination of tiles.

General information

Color

White

Guidance for specification option:

Brilliant white.

Cream

Other

Guidance for specification option:

Dark anthracite and Soft peach.

Grey

Guidance for specification option:

Joint grey, Grey, Pastel grey and Stone grey.

Black

Guidance for specification option:

Graphite black.

Show more

Finish

Smooth

Material

Polyvinyl chloride (PVC)

Shape

Other

Length

2500 mm

Width

10 mm

Height

Warranty description

Five year

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Strip movement joints

Joint width

10 mm.

Edging

-

Material

Polyvinyl chloride (PVC).

Colour

Brilliant white (RAL 9003).

Cream (no RAL).

Dark anthracite (no RAL).

Joint grey (no RAL).

Grey (RAL 7030).

Black (RAL 9011).

Light beige (RAL 1019).

Pastel grey (no RAL).

Stone grey (no RAL).

Insert

-

Material

Polyvinyl chloride (PVC).

Colour

Brilliant white (RAL 9003).

Cream (no RAL).

Dark anthracite (no RAL).

Joint grey (no RAL).

Grey (RAL 7030).

Black (RAL 9011).

Light beige (RAL 1019).

Pastel grey (no RAL).

Stone grey (no RAL).

Product Reference

Schlüter®-DILEX-BWB

Height

Length

2.5 m.

Sustainability data

Contains Red List materials

Yes

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polyvinyl chloride (PVC)

Manufacturing plant location

Recyclability

Product can be recycled where facilities exist

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

65 %

Guidance for specification option:

65% by weight pre-consumer content

Expected Life

25 year
