Acoustic floor and wall - Isocheck Barrier Mat 5 & 10 - Flexible Mass Layer

Verified by manufacturer 1 month ago

Isocheck Barrier Mat 5

Isomass Ltd Variant:

Airborne improvement mass layer to enhance the acoustic airborne performance of timber floors and walls.

Jump to:
+44 (0)330 175 8228 Website

Application

  • Primarily used for their airborne, low-frequency damping properties in floors and walls through timber floors.

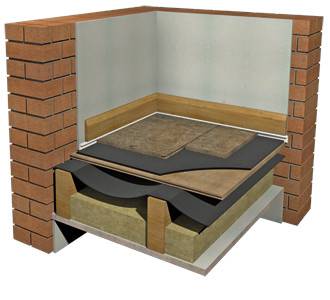

  • Can be laid directly over existing floorboards or draped between joists in floors or sandwiched between two sheets of plasterboard or draped within a studwork wall.
  • Incorporated beneath a floating floor to improve airborne sound in older converted buildings where elements of the building cannot be altered.

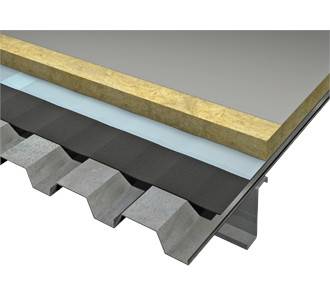

  • Applied beneath metal roofing to dampen rain noise.
  • Suitable for refurbishments, conversions and listed buildings requiring minimal structural change.

Description

Isocheck Barrier Mat 5 kg and 10 kg are constructed of high-density barium sulphate loaded thermoplastic polymer, plasticized with phthalate esters and containing mineral fillers. They enhance the acoustic airborne performance of timber floors and walls.


Features and benefits:

  • Enhance airborne sound.
  • Low-frequency damping properties.
  • Constructed of high-density barium sulphate loaded thermoplastic polymer, plasticised with phthalate esters and containing mineral fillers.
  • Black in colour.
  • Bitumen free, ecologically neutral and recyclable.
  • Minimal increase in height and depth within floors and walls.
  • NHBC tested.
  • Recyclable post-use.

General information

Color

Black

Finish

Smooth

Material

Polymer

Shape

Rectangle

Length

5000 mm

2000 mm

Width

1200 mm

Height

2 mm

4 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K11/27 Acoustic separating floor system

K11/275 Acoustic separating floor system

K21/115 Wood laminate flooring

K21/10 Wood laminate flooring

Specification data - Resilient layer insulation

Material

Polymer.

Guidance for specification option:

High-density barium sulphate loaded thermoplastic polymer, plasticized with phthalate esters and containing mineral fillers.

Density

2500 kg/m3 (approximately).

Thickness

2 mm.

Fire performance

-

Manufacturer guidance

N/A - Isocheck Barrier Mat 5 or 10 should never be used for fire protection.

Sound insulation rating

Guidance for specification option:

Acoustically tested at a UKAS certified independent test laboratory. Tested and rated according to:

  • BS EN ISO 717-1:2013.
  • BS EN ISO 10140-1:2016 .
  • BS EN ISO 10140:2010.


Consult manufacturer for details.

Manufacturer guidance

Isocheck Barrier Mat 5 or 10 is used to enhance airborne sound insulation and also to dampen rain noise within a metal roof structure.

Recycled content

100%.

Overall size

1200 x 2000 mm.

1200 x 5000 mm.

Sustainability data

Contains Red List materials

Yes

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

Isocheck Barrier Mat - Data Sheet - v1.13

Isocheck Barrier Mat - Data Sheet - v1.13

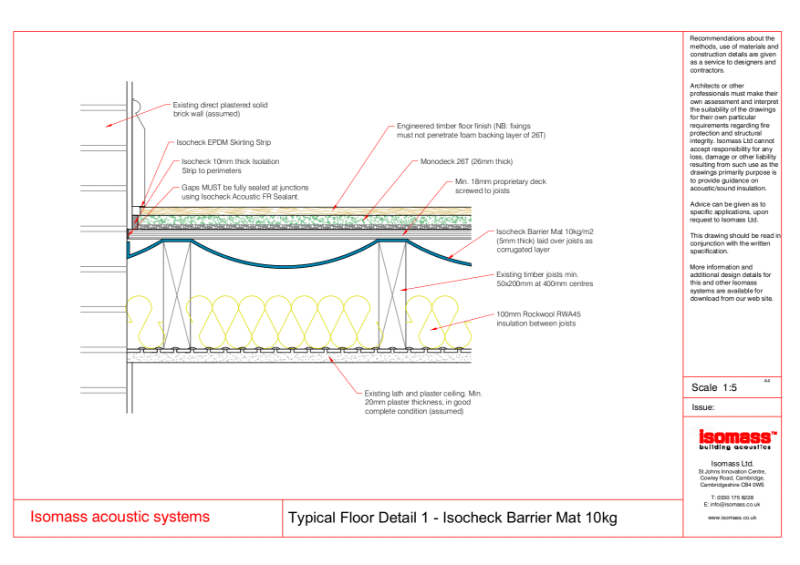

Typical Floor Detail 1 - Isocheck Barrier Mat 10kg

Typical Floor Detail 1 - Isocheck Barrier Mat 10kg

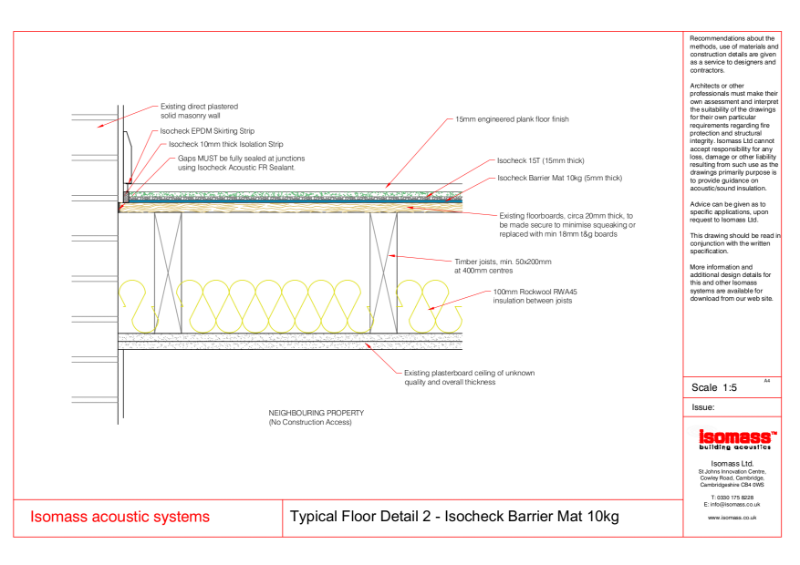

Typical Floor Detail 2 - Isocheck Barrier Mat 10kg

Typical Floor Detail 2 - Isocheck Barrier Mat 10kg
