Acoustic Isolation - Isocheck Isolation Strip - Acoustic isolation adhesive tape

Verified by manufacturer 1 month ago

Isomass Ltd

Self adhesive isolation strip. Impact sound transmission reduction system. Isolating timber steel and masonry partition walls, separating walls and floors.

Jump to:
+44 (0)330 175 8228 Website

Application

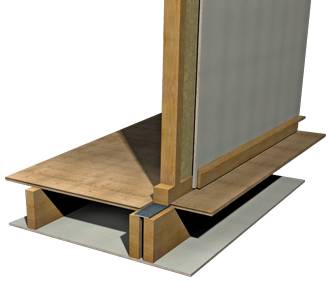

  • Designed to enhance impact sound insulation when used within all types of construction by isolating timber, steel and masonry separating and partition walls.
  • Suitable for new build, conversion and refurbishment.

Description

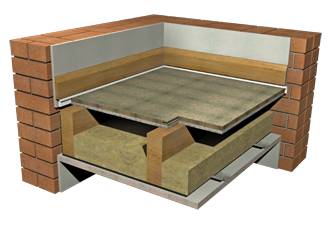

Isocheck Isolation Strip is suitable for upgrades when looking to increase impact sound insulation from footfall noise on floors and reduce structure-borne noise from doors closing and light switches on stud walls.


Isocheck Isolation Strip has no adverse effect on the structural stability of the walls and its adhesive backing ensures it can be held in position as the work progresses.

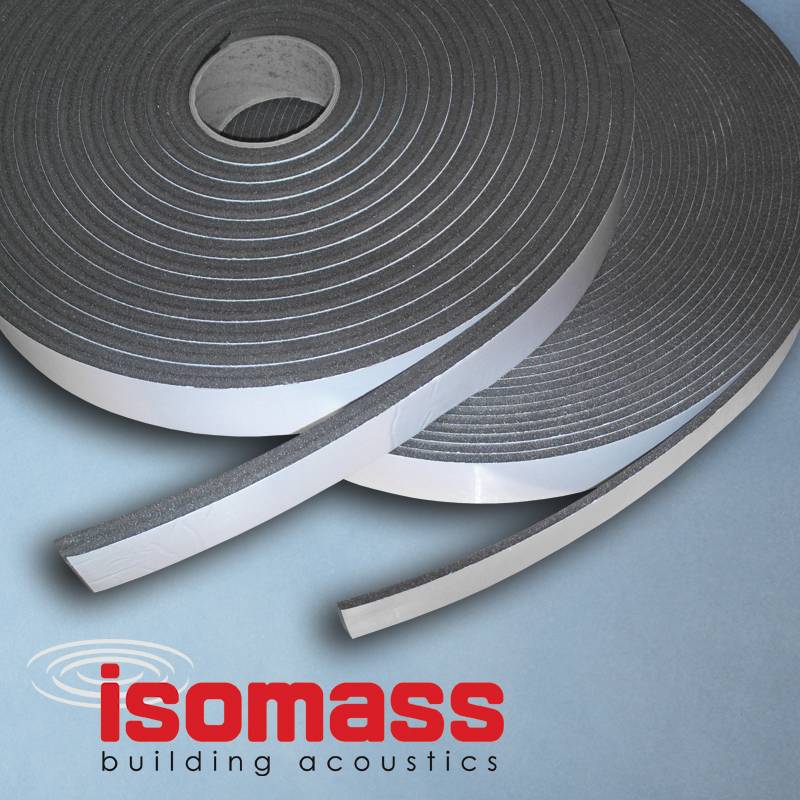

The Isolating Strips are composed of cross-linked Isopoli foam with a self-adhesive layer on one side.

General information

Color

Black

White

Finish

Smooth

Material

Foam

Length

25000 mm

10000 mm

Width

50 mm

75 mm

100 mm

Height

5 mm

10 mm

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K10/145 Wall lining system (metal studs)

K10/205 Lining on timber

K10/115 Metal stud partition system

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/185 Wall lining system (adhesive)

K11/275 Acoustic separating floor system

K10/15 Lining on timber

K10/125 Metal stud partition system

K10/175 Wall lining system (metal furrings)

K10/30 Metal stud

K10/35 Wall lining system (metal framing)

K10/45 Wall lining system (adhesive)

Specification data - Resilient layer insulation

Material

Isopoli foam.

Guidance for specification option:

Cross-linked, self-adhesive on one side.

Thickness

5 mm.

Guidance for specification option:

25 m long roll.

10 mm.

Guidance for specification option:

10 m long roll.

Width

50 mm.

75 mm.

100 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Foam

Recyclability

100%

Literature

Isocheck Isolation Strip - Data Sheet v3.11

Isocheck Isolation Strip - Data Sheet v3.11

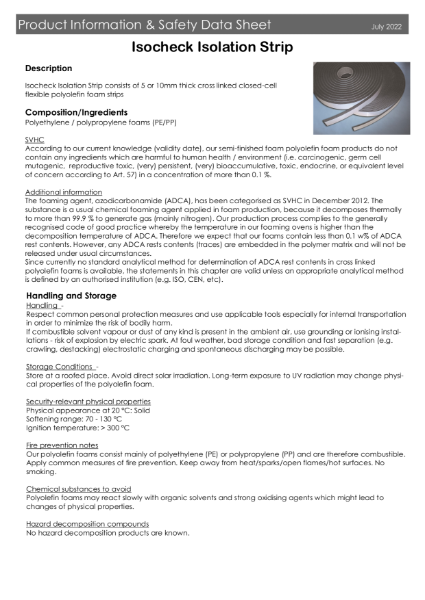

Isocheck Isolation Strip - Safety Data Sheet

Isocheck Isolation Strip - Safety Data Sheet
